SKU: 61904-2RS1-EU

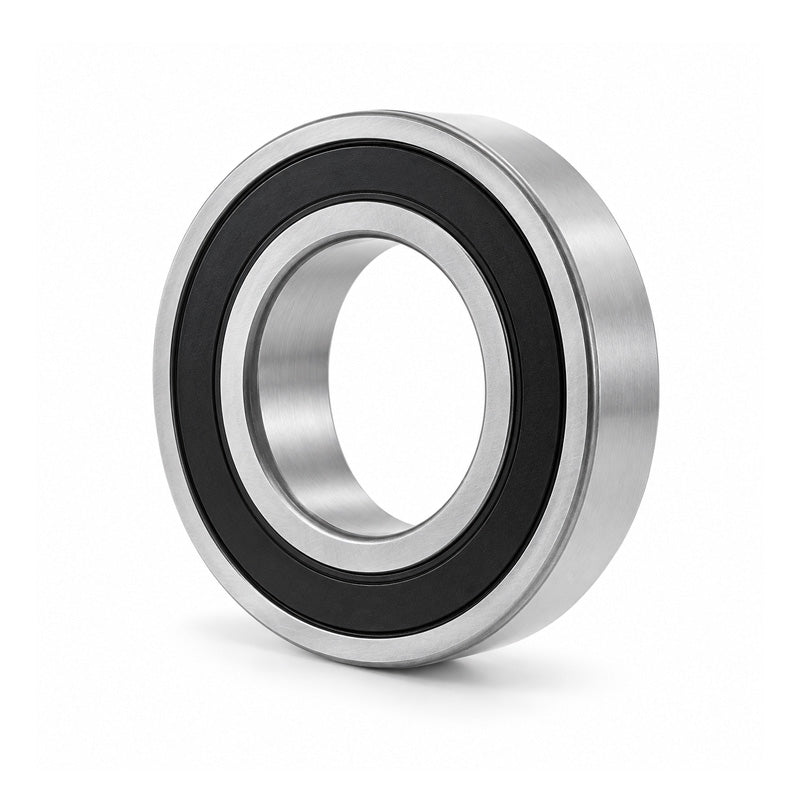

69042RS Budget Rubber Sealed Thin Section Deep Groove Ball Bearing 20x37x9mm
Equivalent to: 61904NSE 61904DU 61904RS 619042RSH 61904P 61904RSR 61904LU 6904NSE 6904DU 6904RS 69042RSH 6904P 6904RSR 6904LU 619042NSE 61904DDU 619042RS 6190422RSH 61904PP 619042RSR 61904LLU 619042RS2 61904RS2 619042RSH 619042RS1
In stock
Price Break
Description
|
Budget Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61904NSE 61904DU 61904RS 619042RSH 61904P 61904RSR 61904LU 6904NSE 6904DU 6904RS 69042RSH 6904P 6904RSR 6904LU 619042NSE 61904DDU 619042RS 6190422RSH 61904PP 619042RSR 61904LLU 619042RS2 61904RS2 619042RSH 619042RS1
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 37mm
- Width:
- 9mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 20mm |
|---|---|
| D | 37mm |
| B | 9mm |
| r min | 0.3mm |
| Dynamic load Cr | 6.35 kN |
| Static load Cor | 3.7 kN |
| Speed in grease | 19000 rpm |
| Speed in oil | 23000 rpm |
