Timken 766/752D TDO Double Outer Race Taper Roller Bearing 3.5x6.375x4.125x3.375 inch
Timken 766/752D TDO Double Outer Race Taper Roller Bearing 3.5x6.375x4.125x3.375 inch
Regular price
CHF 1,042.00
ex VAT
Regular price
Sale price
CHF 1,042.00
ex VAT
In stock
Price Break
10+
CHF 830.19
20+
CHF 783.55
30+
CHF 774.22
40+
CHF 764.89
50+
CHF 755.57
75+
CHF 746.24
100+
CHF 699.60
200+
CHF 690.27
250+
CHF 680.94
500+
CHF 671.61
1000+
CHF 652.96
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Outside Diameter:
- 161.93mm = 6.375 (6-3/8) inch
- Width:
- 104.78mm = 4.125 (4-1/8) inch
Technical
Technical

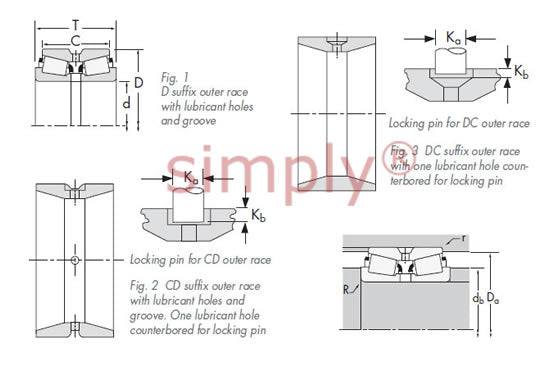

| d | 88.9mm = 3.5 inch |
|---|---|
| D | 161.925mm = 6.375 inch |
| T | 104.775mm = 4.125 inch |
| C | 85.725mm = 3.375 inch |
| Dynamic (1) C1 | 528000N |
| Factors (5) e | 0.34 |
| Factors (5) Y1 | 1.98 |
| Factors (5) Y2 | 2.95 |
| Dynamic (2) C90 | 78500N |
| Dynamic (2) Ca90 | 45900N |
| Dynamic (2) C90(2) | 137000N |
| Factors (5) K | 1.71 |
| Shaft max shaft fillet radius R(3) | 7mm = 0.28 inch |
| Shaft backing shoulder diameter db | 113mm = 4.45 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 150mm = 5.91 inch |
| G1 | 177 |
| G2 | 29.4 |
| Cg | 0.0945 |
