SKU: H312E-SKF

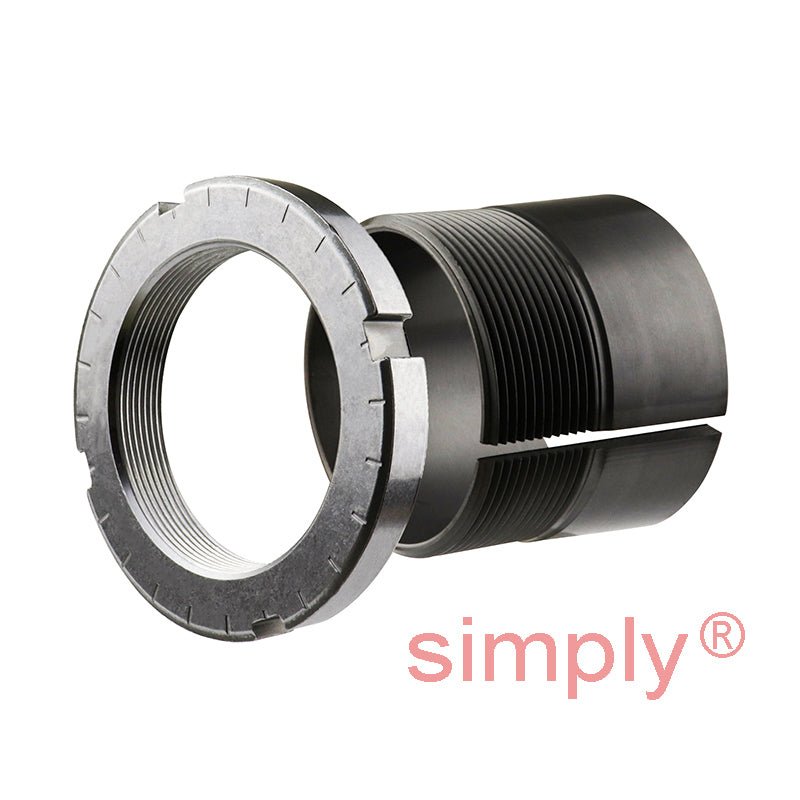

SKF H312E Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft

Name: SKF H312E Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft
Brand: SKF
SKU: H312E-SKF
Price: 47.00 CHF
Availability: InStock

CHF 47.00 ex VAT

Sale Sold out

In stock

Price Break

2+ CHF 36.66

5+ CHF 34.60

10+ CHF 34.19

20+ CHF 33.78

49+ CHF 33.37

74+ CHF 32.96

99+ CHF 30.90

199+ CHF 30.49

249+ CHF 30.07

499+ CHF 29.66

999+ CHF 28.84

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 55mm
Outside Diameter:: 80mm
Width:: 47mm

Technical

---	Dimensions
d1	55mm
d	60mm
d3	80mm
B1	47mm
B2	14mm
G	Thread 60x2mm
Weight	0.4 kg
---	Assembly Parts
Sleeve	H312E
Nut	KMFE12
Hydraulic nut	HMV12E
---	Matching Carb Toroidal Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2212KTN9+taper>C2212KTN9</a>
