SKU: KMT3-MB

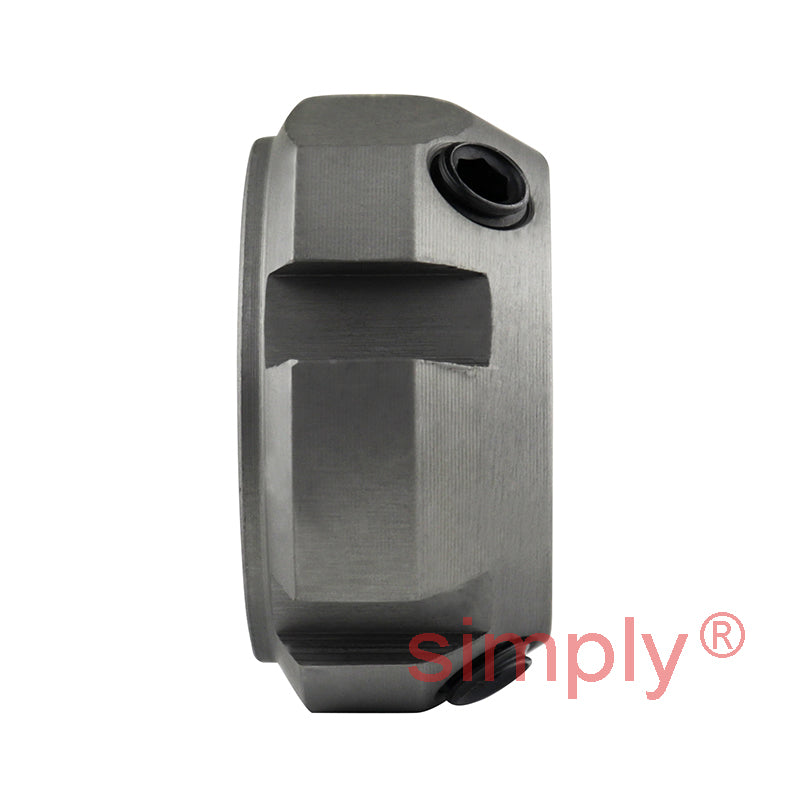

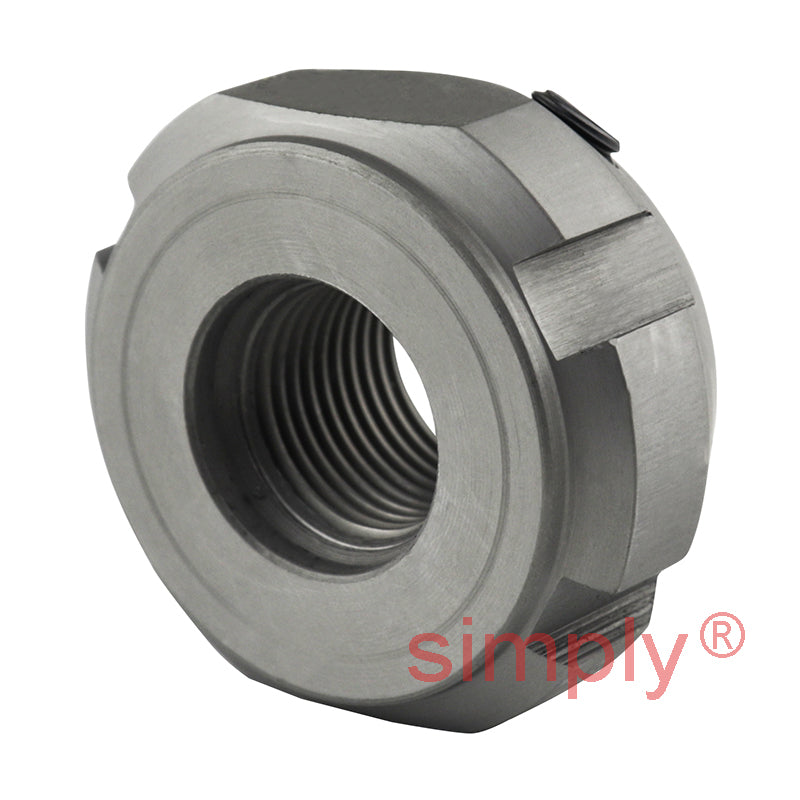

KMT3 Locknut with ISO Metric Threads 17x37x18mm
KMT3 Locknut with ISO Metric Threads 17x37x18mm
Regular price
CHF 87.00
ex VAT
Regular price
Sale price
CHF 87.00
ex VAT
In stock
Price Break
10+
CHF 77.43
19+
CHF 73.08
29+
CHF 72.21
39+
CHF 71.34
49+
CHF 70.47
74+
CHF 69.60
99+
CHF 65.25
199+
CHF 64.38
249+
CHF 63.51
499+
CHF 62.64
999+
CHF 60.90
Couldn't load pickup availability
Description
Description
|
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- M17x1
Technical
Technical
| G | M17x1 |
|---|---|
| d1 | 29mm |
| d2 | 37mm |
| d3 | 33mm |
| d4 | 18mm |
| B | 18mm |
| b | 5mm |
| h | 2mm |
| M | 34mm |
| Axial load capacity | 80 kN |
| Loosening torque | 25 N m |
| Mass | 0.1 kg |
| Spanner | HN4 |
| Grub screw | M6 |
| Screw torque | 8 N m |
