SKU: NJ2224ECJ-SKF

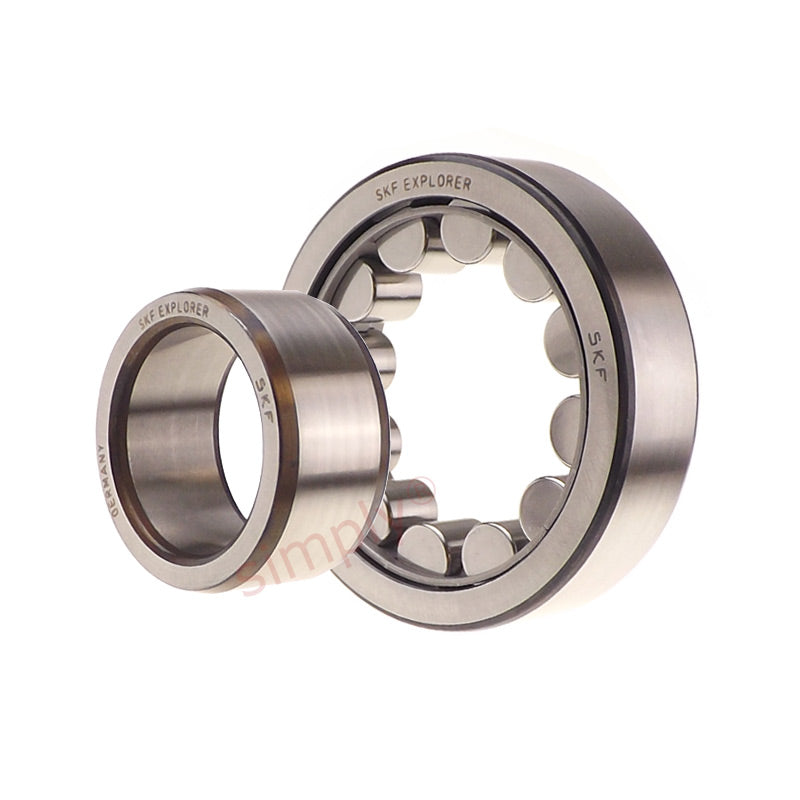

SKF NJ2224ECJ Single Row Cylindrical Roller Bearing with Pressed Steel Cage 120x215x58mm
SKF NJ2224ECJ Single Row Cylindrical Roller Bearing with Pressed Steel Cage 120x215x58mm
Regular price
CHF 790.00
ex VAT
Regular price
Sale price
CHF 790.00
ex VAT
In stock
Price Break
10+
CHF 629.07
19+
CHF 593.73
29+
CHF 586.66
39+
CHF 579.59
49+
CHF 572.52
74+
CHF 565.46
99+
CHF 530.11
199+
CHF 523.05
249+
CHF 515.98
499+
CHF 508.91
999+
CHF 494.77
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 58mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 120mm |
|---|---|
| D | 215mm |
| B | 58mm |
| Dynamic load C | 520 kN |
| Static load Co | 630 kN |
| Fatigue load limit Pu | 72 kN |
| Reference speed | 3400 rpm |
| Limiting speed | 3600 rpm |
| Weight | 8.5 kg |
| Alt cage | J.M.ML |
| d1 | 153mm |
| D1 | 188mm |
| F,E | 143.5mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 3.8mm |
| da min | 132mm |
| da max | 140mm |
| db | 156mm |
| Da max | 203mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.2 |
| Angle ring | HJ2224EC |
| Angle Ring Weight | 0.74 kg |
| B1 | 11mm |
| B2 | 20mm |
