SKU: NKXR30-EU

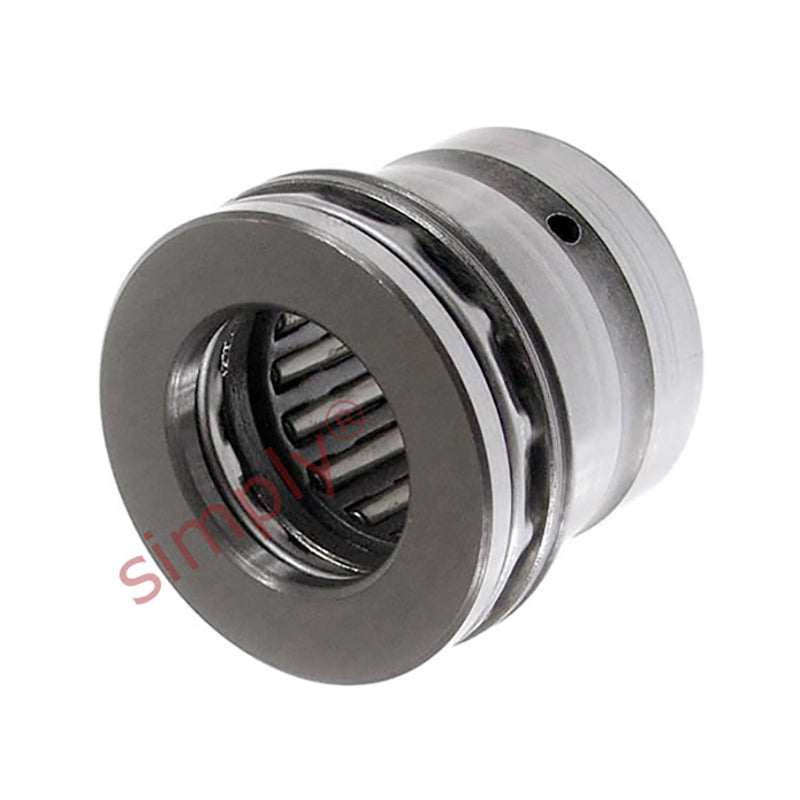

NKXR30 Budget Needle Roller Thrust Bearing without Cover 30x42x30mm
NKXR30 Budget Needle Roller Thrust Bearing without Cover 30x42x30mm
Regular price
CHF 55.00
ex VAT
Regular price
Sale price
CHF 55.00
ex VAT
In stock
Price Break
10+
CHF 43.33
19+
CHF 40.90
29+
CHF 40.41
39+
CHF 39.92
49+
CHF 39.44
74+
CHF 38.95
99+
CHF 36.52
199+
CHF 36.03
249+
CHF 35.54
499+
CHF 35.05
999+
CHF 34.08
Description
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 42mm
- Width:
- 30mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 42mm |
| C | 30mm |
| Dynamic load | 22900 N |
| Static load | 39000 N |
| Axial dynamic load | 27000 N |
| Axial static load | 78000 N |
| Fatigue load limit radial Pu | 4800 N |
| Fatigue load limit axial Pu | 7650 N |
| Min load factor A | 0.49 |
| Speed in grease | 2000 rpm |
| Speed in oil | 3000 rpm |
| C1 | 11mm |
| C2 | 9.5mm |
| d | 30mm |
| D1 | 47mm |
| r1r2 min | 0.6mm |
| da | 42.7mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 25mm |
| F | 30mm |
| B1 | 20mm |
| Inner ring | IR25x30x20 |
| Weight | 140 g |
