SKU: NU1034ML-SKF

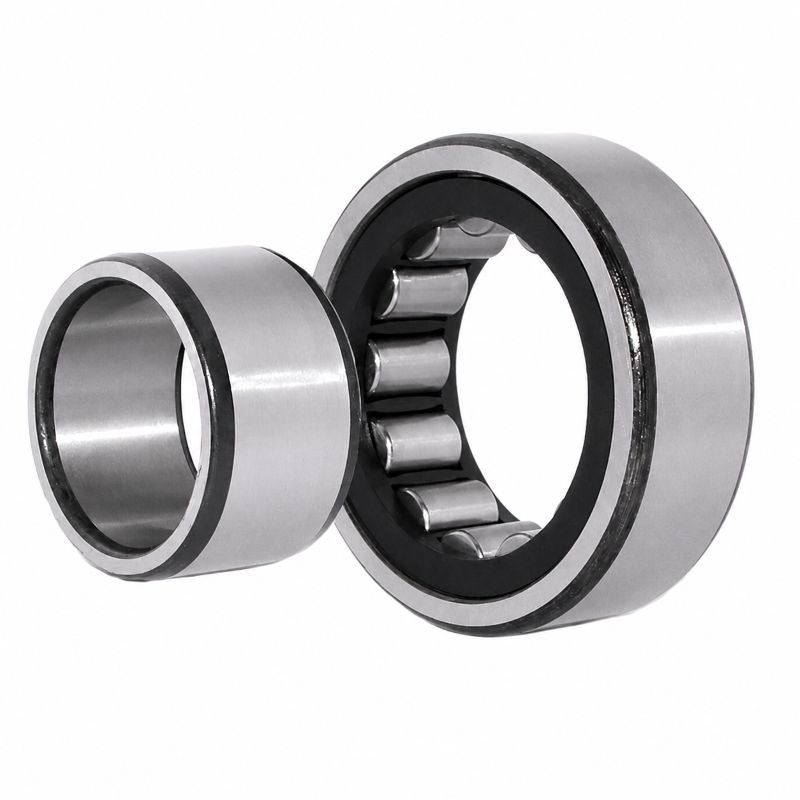

SKF NU1034ML Single Row Cylindrical Roller Bearing with Brass Cage 170x260x42mm
SKF NU1034ML Single Row Cylindrical Roller Bearing with Brass Cage 170x260x42mm
Regular price
CHF 1,094.00
ex VAT
Regular price
Sale price
CHF 1,094.00
ex VAT
In stock
Price Break
10+
CHF 871.71
19+
CHF 822.73
29+
CHF 812.94
39+
CHF 803.15
49+
CHF 793.35
74+
CHF 783.56
99+
CHF 734.58
199+
CHF 724.79
249+
CHF 715.00
499+
CHF 705.20
999+
CHF 685.61
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 170mm
- Outside Diameter:
- 260mm
- Width:
- 42mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 170mm |
|---|---|
| D | 260mm |
| B | 42mm |
| Dynamic load C | 275 kN |
| Static load Co | 400 kN |
| Fatigue load limit Pu | 41.5 kN |
| Reference speed | 2800 rpm |
| Limiting speed | 4300 rpm |
| Weight | 8 kg |
| Alt cage | M |
| d1 | 201mm |
| D1 | 227mm |
| F,E | 193mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 5.8mm |
| da min | 180mm |
| da max | 190mm |
| db | 196mm |
| Da max | 250mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.1 |
| Angle ring | HJ1034 |
| Angle Ring Weight | 0.94 kg |
| B1 | 11mm |
| B2 | 21mm |
