SKU: NU2322ECP-SKF

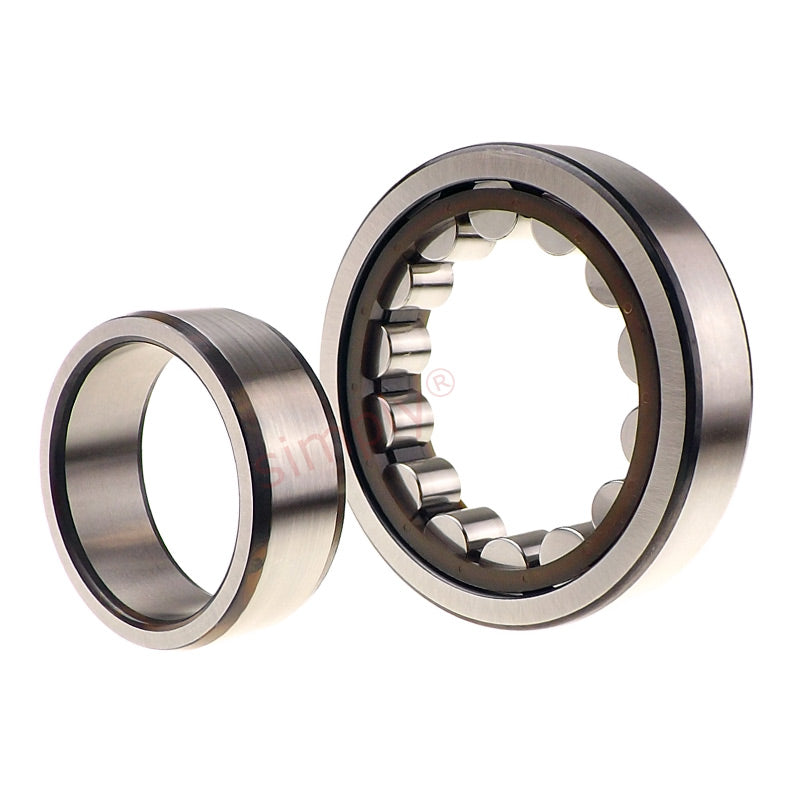

SKF NU2322ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 110x240x80mm
SKF NU2322ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 110x240x80mm
Regular price
CHF 871.00
ex VAT
Regular price
Sale price
CHF 871.00
ex VAT
In stock
Price Break
10+
CHF 693.77
19+
CHF 654.80
29+
CHF 647.00
39+
CHF 639.21
49+
CHF 631.41
74+
CHF 623.62
99+
CHF 584.64
199+
CHF 576.85
249+
CHF 569.05
499+
CHF 561.25
999+
CHF 545.66
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 240mm
- Width:
- 80mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 110mm |
|---|---|
| D | 240mm |
| B | 80mm |
| Dynamic load C | 780 kN |
| Static load Co | 900 kN |
| Fatigue load limit Pu | 102 kN |
| Reference speed | 3000 rpm |
| Limiting speed | 3400 rpm |
| Weight | 17 kg |
| Alt cage | MA |
| d1 | 155mm |
| D1 | 201mm |
| F,E | 143mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 7.5mm |
| da min | 124mm |
| da max | 139mm |
| db | 146mm |
| Da max | 226mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.25 |
| Angle ring | HJ2322EC |
| Angle Ring Weight | 1.25 kg |
| B1 | 14mm |
| B2 | 26.5mm |
