SKU: SUCFPL207FG1-SNR

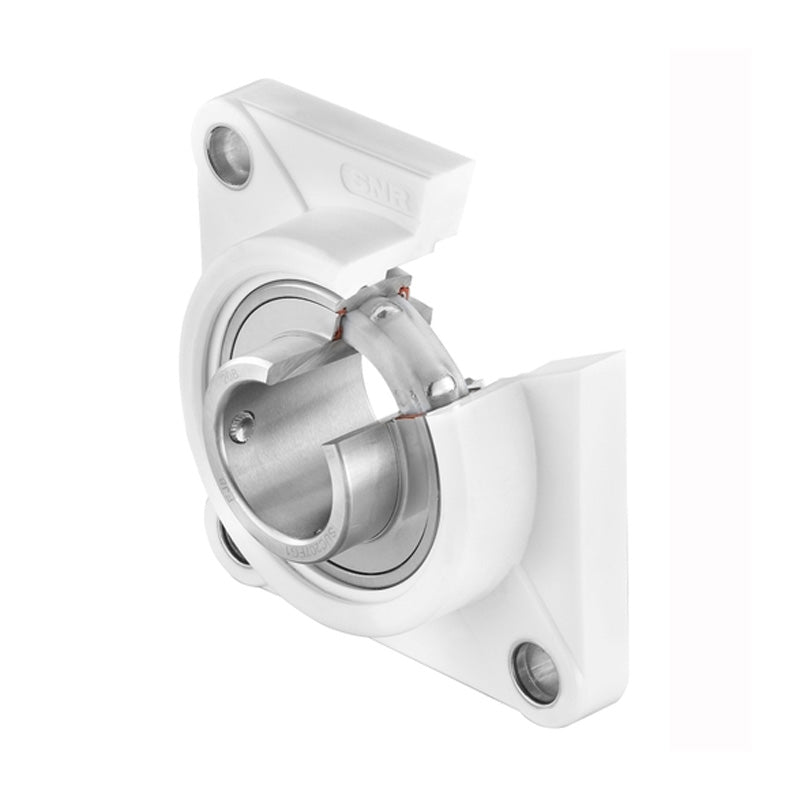

SNR SUCFPL207FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with35mm Bore Insert - Allow 2-3 Days

SNR SUCFPL207FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with35mm Bore Insert - Allow 2-3 Days
Regular price CHF 199.00 ex VAT
Regular price Sale price CHF 199.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 175.43
4+ CHF 168.34
9+ CHF 164.80
19+ CHF 159.48
49+ CHF 155.94
99+ CHF 147.08
499+ CHF 124.04
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 35mm
A - Housing height 34.8mm
A1 - Housing foot height / flange height 15.5mm
A2 - Total height from mounting surface 46.9mm
B - Width of Inner Ring 42.9mm
d - Shaft diameter 35mm
e - Distance mounting surface to bearing centre 21.5mm
J - Mounting holes distance 92mm
L - Housing width / diameter 118mm
N - Mounting hole dimension 13mm
S - Distance front side/bearing centre 17.5mm
C - Dynamic load rating 25.6 kN
C0 - Static load rating 15.3 kN
Operating temperature min. -10 Deg C
Operating temperature max. 80 Deg C
Mass 0.7kg
Recommended tightening torque for set screw 8.3 Nm
