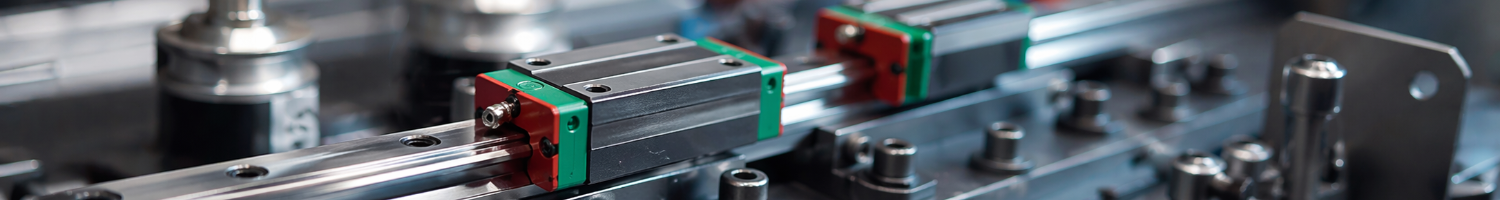

Linear Guiderails

What is a linear guide rail?

A linear guide rail, often called a linear guide or profile rail guide, is a precision system that supports and guides a moving part in a straight line. It is made of two main parts: a hardened steel rail that is fixed to the machine, and a carriage, also called a block or slider, that runs along the rail. Inside the carriage, rows of steel balls or rollers recirculate between the carriage and the rail, giving smooth, low-friction movement with very high accuracy and rigidity.

Linear guiderails are used wherever a table, head, or carriage needs to move accurately and repeatably, such as the axes of a CNC machine, the gantry of a 3D printer, or the slide of an automated assembly system. They carry loads from all directions while keeping the moving part precisely on track.

A typical linear guide rail system has:

• Rail - a hardened and precision-ground steel rail with running tracks along its sides, bolted to the machine base
• Carriage (block) - the moving part that runs along the rail and carries the load, with mounting holes for attaching the table or component
• Rolling elements - steel balls or rollers that roll between the carriage and the rail, carrying the load with very low friction
• Recirculation system - end caps and return channels that guide the balls or rollers back through the carriage, so they circulate continuously
• Seals and scrapers - fitted at the ends and along the carriage to keep lubricant in and dirt, dust, and swarf out
• Lubrication connection - a grease nipple or lubrication port for keeping the rolling elements lubricated

Key features:

• High precision - accurately ground rails and carriages give precise, repeatable straight-line movement
• High rigidity - rolling elements and preload minimise deflection under load
• Multi-directional load capacity - carriages carry loads from above, below, and the sides, as well as moments
• Low friction - rolling contact gives smooth movement with little force needed, and no stick-slip
• High speed capability - suitable for fast, dynamic movement and rapid acceleration
• Long service life - hardened components and rolling contact keep wear low
• Easy installation - ready-made rails and carriages bolt directly onto the machine
• Wide size range - from miniature guides for compact devices up to large guides for heavy machine tools

In simple terms, a linear guiderail is a precision track and carriage that lets a machine part move smoothly, accurately, and rigidly in a straight line.

Why are linear guiderails essential?

Linear guide rails are essential because precise straight-line movement is at the heart of modern machinery and automation. The accuracy of a CNC machine, the quality of a 3D print, and the reliability of an automated assembly line all depend on how well moving parts are guided. Linear guide rails give the accuracy, stiffness, and smoothness needed for high-quality, repeatable results.

Their main benefits are:

• Accurate positioning - the moving part follows a precise, straight path, improving machining accuracy and product quality
• High rigidity - resists deflection under cutting forces and heavy loads, improving surface finish and tool life
• Smooth, low-friction motion - rolling contact reduces the force needed to move the load, allowing smaller motors and less energy use
• No stick-slip - smooth starts and stops allow fine, precise movements
• High speed and acceleration - supports fast, dynamic movement in modern automated systems
• Repeatability - the moving part returns to the same position time after time
• Low maintenance - sealed and lubricated carriages need only occasional relubrication
• Long service life - rolling contact means much less wear than sliding guides
• Simple machine design - ready-made guides replace complex machined slideways, saving design and manufacturing time
• Easy replacement - standard sizes make repairs and upgrades straightforward

These qualities make linear guide rails important in a wide range of equipment, including:

• CNC machine tools - milling machines, lathes, machining centres, grinders, and routers
• 3D printers, laser cutters, and engravers - precise motion for printing, cutting, and marking
• Automation and robotics - gantries, pick-and-place systems, linear actuators, and transfer systems
• Semiconductor and electronics equipment - wafer handling, inspection, and assembly machines
• Packaging and food machinery - precise movement in filling, sealing, and handling
• Medical and laboratory equipment - scanners, analysers, and precise positioning stages
• Measuring and inspection equipment - coordinate measuring machines and test rigs
• Printing and textile machinery - moving heads, carriages, and guides
• Woodworking and stone cutting machinery - saws, routers, and cutting machines
• DIY and hobby CNC builds - small routers, mills, and printers

The main types of linear guide rails

Linear guide rails are usually grouped by their rolling elements, size, carriage shape, preload, and accuracy.

By rolling elements:

• Ball guides - use recirculating steel balls, giving smooth, low-friction movement and high-speed capability. They are the most common type and suit most CNC and automation applications
• Roller guides - use cylindrical rollers instead of balls, giving much higher rigidity and load capacity. They are used on heavy machine tools and applications with high cutting forces

By size:

• Miniature guides - small rails and carriages, often in sizes from around 5 mm to 15 mm rail width, used in compact equipment such as 3D printers, laboratory devices, electronics assembly, and medical instruments. Many are made from stainless steel for corrosion resistance
• Standard guides - common sizes from around 15 mm to 65 mm, used in most CNC machines, automation, and industrial equipment
• Large guides - bigger sizes for heavy machine tools and high-load applications

By carriage shape:

• Flanged carriages - have a wide flange with mounting holes, allowing them to be bolted from above or below. They give a stable mounting and are good for carrying moment loads
• Block or narrow carriages - have a narrower body with mounting holes on the top only, saving space across the machine
• Standard, long, and short carriages - long carriages have more rolling elements for higher load capacity and rigidity, while short carriages save space and weight for lighter loads
• High and low profile carriages - low profile designs reduce the overall height of the assembly for compact machines

By preload:

• Clearance or very light preload - a small amount of play for smooth, low-friction movement, used where loads are light, and accuracy demands are lower
• Light preload - removes play while keeping friction low, a common choice for general automation and light machining
• Medium preload - gives higher rigidity for machine tools and applications with vibration or moment loads
• Heavy preload - gives maximum rigidity for heavy cutting and high-precision machine tools

By accuracy class:

• Normal accuracy - for general automation and handling where very high precision is not required
• High accuracy - for most CNC machinery and precision equipment
• Precision and super precision - for high-precision machine tools, grinding, measuring, and semiconductor equipment

By special features:

• Interchangeable carriages and rails - carriages that can be fitted to any rail of the same size and series, making stocking and replacement easier
• Stainless steel guides - for wet, clean room, food, and corrosive environments
• Self-lubricating carriages - include lubrication reservoirs for long maintenance-free running
• Extra seals and scrapers - for dusty, dirty, or swarf-filled environments
• Rails with bolt hole caps or cover strips - give a smooth top surface so seals work properly and dirt cannot collect in the bolt holes

How to choose the right linear guide rail?

Choosing the right linear guide rail means matching it to the loads, speed, accuracy, and space in your machine. Work through these points in order:

• Load - calculate the loads on each carriage, including the weight, acceleration forces, cutting forces, and moment loads, and check them against the dynamic and static load ratings
• Ball or roller - choose ball guides for most applications, and roller guides where very high rigidity and load capacity are needed
• Size - choose a rail size that gives enough load capacity and rigidity, while fitting the available space
• Carriage shape - choose flanged or block carriages to suit how the table or component will be mounted, and long carriages for higher loads and rigidity
• Number of carriages and rails - most axes use two parallel rails with two carriages on each rail, which spreads the load and resists moments
• Preload - choose a light preload for smooth, low-friction movement, and a medium or heavy preload for rigidity under cutting forces or vibration
• Accuracy class - choose an accuracy class that matches the precision of your machine
• Speed and acceleration - check that the guide suits the maximum speed and acceleration of the axis
• Rail length - choose a rail length that suits the travel plus the carriage length, and plan for joined rails if a very long travel is needed
• Mounting surface - make sure the mounting surfaces are flat, rigid, and accurate, with reference edges where needed for alignment
• Environment - choose stainless steel, extra seals, scrapers, or covers for wet, dusty, or swarf-filled conditions
• Lubrication - plan how carriages will be lubricated, whether with grease nipples, central lubrication, or self-lubricating units
• Compatibility - make sure replacement carriages match the rail size, series, and profile. Carriages from different manufacturers are not usually interchangeable on the same rail
• Quality and brand - choose guides from reputable linear motion suppliers, as poor-quality guides can reduce accuracy and wear quickly

FAQ - all you need to know about linear guide rails

What is the difference between a rail and a carriage?

The rail is the fixed track that is bolted to the machine, while the carriage, also called the block, runs along the rail and carries the moving part.

What is the difference between ball and roller linear guides?

Ball guides use recirculating balls for smooth, fast, low-friction movement. Roller guides use rollers for much higher rigidity and load capacity, making them ideal for heavy machining.

What does preload mean on a linear guide?

Preload is a small, built-in internal force between the rolling elements and the rail. It removes play and increases rigidity. Higher preload gives more rigidity but also slightly higher friction.

What does the accuracy class mean?

The accuracy class describes how precisely the rail and carriage are made, including running parallelism and height tolerance. Higher accuracy classes give straighter, more precise movement.

Can I fit any carriage onto any rail?

No. The carriage must match the rail size, series, and profile. Carriages from different manufacturers are not usually interchangeable on the same rail, even if they are the same nominal size.

How many carriages do I need?

Most machine axes use two parallel rails with two carriages on each rail, giving four carriages in total. This spreads the load and resists tipping and twisting.

How do I install a linear guide rail?

Mount the rail on a clean, flat, and rigid surface, push it against a reference edge if one is used, and tighten the bolts in sequence to the recommended torque. Check that parallel rails are aligned accurately before fitting the table.

Can I remove a carriage from its rail?

Yes, but only with care. Many carriages need a dummy rail or retainer to slide onto when removed, otherwise the balls or rollers can fall out. Always follow the manufacturer’s instructions.

Do linear guide rails need lubrication?

Yes. Carriages need regular lubrication with grease or oil to run smoothly and reach their full service life. Follow the manufacturer’s lubrication intervals, or use self-lubricating carriages for longer intervals.

What are the signs of a worn linear guide?

Signs include play in the carriage, rough or noisy movement, vibration, loss of accuracy, poor surface finish on machined parts, and visible wear or damage to the rail or seals.
