SKU: 08B-2-SNX-NO26-RENOLD
Renold SYNO 08B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Renold SYNO 08B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Regular price
CHF 18.00
ex VAT
Regular price
Sale price
CHF 18.00
ex VAT
In stock
Price Break
2+
CHF 14.13
5+
CHF 13.33
10+
CHF 13.18
29+
CHF 13.02
49+
CHF 12.86
75+
CHF 12.70
100+
CHF 11.91
200+
CHF 11.75
250+
CHF 11.59
500+
CHF 11.43
1000+
CHF 11.11
Description
Description

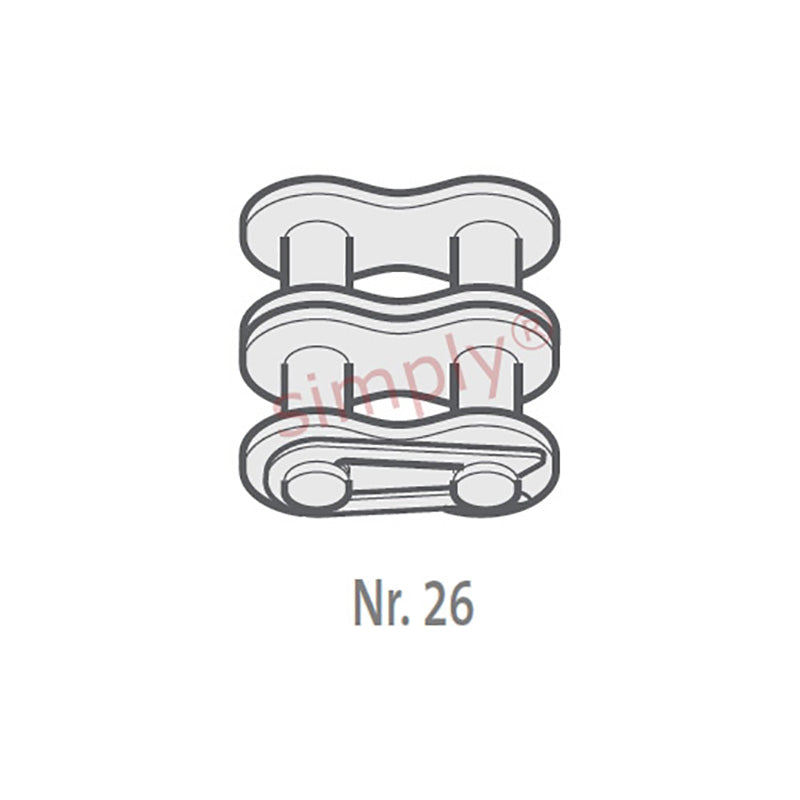

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.75mm |
| Roller Diameter max (C) | 8.51mm |
| Plate Height max (D) | 11.7mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 4.45mm |
| Pin Length max (H2) | 30.4mm |
| Connecting Link Extension max (J) | 2mm |
| Transverse Pitch nom (K) | mm |
| ISO606 Tensile Strength min | 31100 N |
| Weight | 0.006kg/m |
