SKU: 6304-2RS/C3-KOY

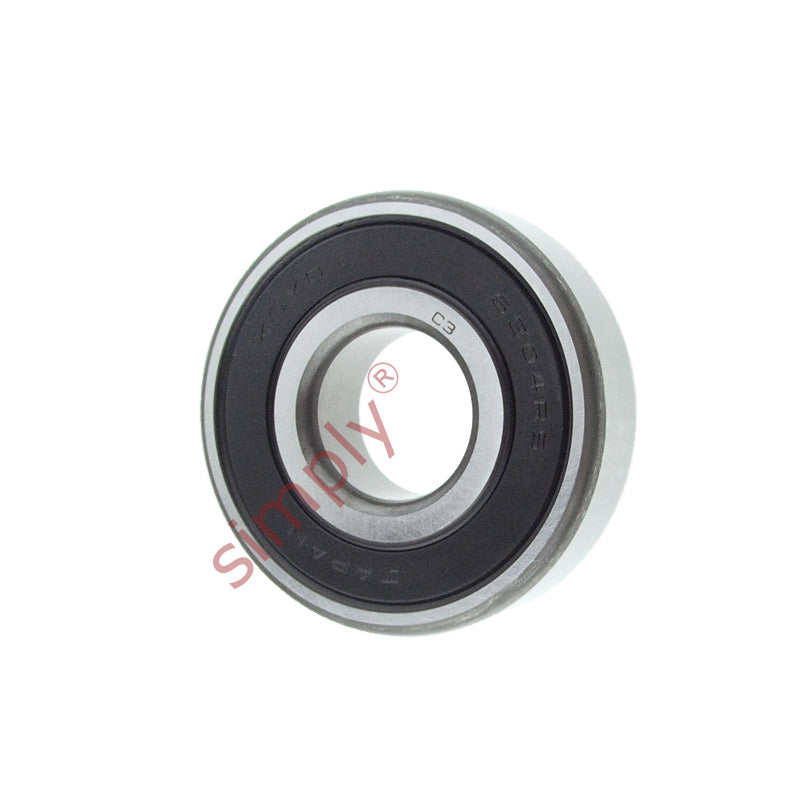

KOYO 63042RSC3 Rubber Sealed Deep Groove Ball Bearing 20x52x15mm
KOYO 63042RSC3 Rubber Sealed Deep Groove Ball Bearing 20x52x15mm
Regular price
CHF 12.00
ex VAT
Regular price
Sale price
CHF 12.00
ex VAT
Equivalent to: 6304NSEC3 6304DUC3 6304RSC3 6304RSHC3 6304PC3 6304RSRC3 6304LUC3 63042NSEC3 6304DDUC3 63042RS1C3 63042RSHC3 6304PPC3 63042RSRC3 6304LLU
In stock
Price Break
5+
CHF 9.37
9+
CHF 8.85
19+
CHF 8.74
29+
CHF 8.64
49+
CHF 8.53
74+
CHF 8.43
99+
CHF 7.90
199+
CHF 7.79
249+
CHF 7.69
499+
CHF 7.58
999+
CHF 7.37
Share this product
Description
Description
|
KOYO Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6304NSEC3 6304DUC3 6304RSC3 6304RSHC3 6304PC3 6304RSRC3 6304LUC3 63042NSEC3 6304DDUC3 63042RS1C3 63042RSHC3 6304PPC3 63042RSRC3 6304LLU
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 20mm |
|---|---|
| Outside Diameter D | 52mm |
| Width B | 15mm |
| Min radius r | 1.1mm |
| Dynamic load | 15.9 kN |
| Static load | 7.85 kN |
| Max speed in oil | 17000 rpm |
| Max speed in grease | 9500 rpm |
