SKU: 6308-2Z-KOY

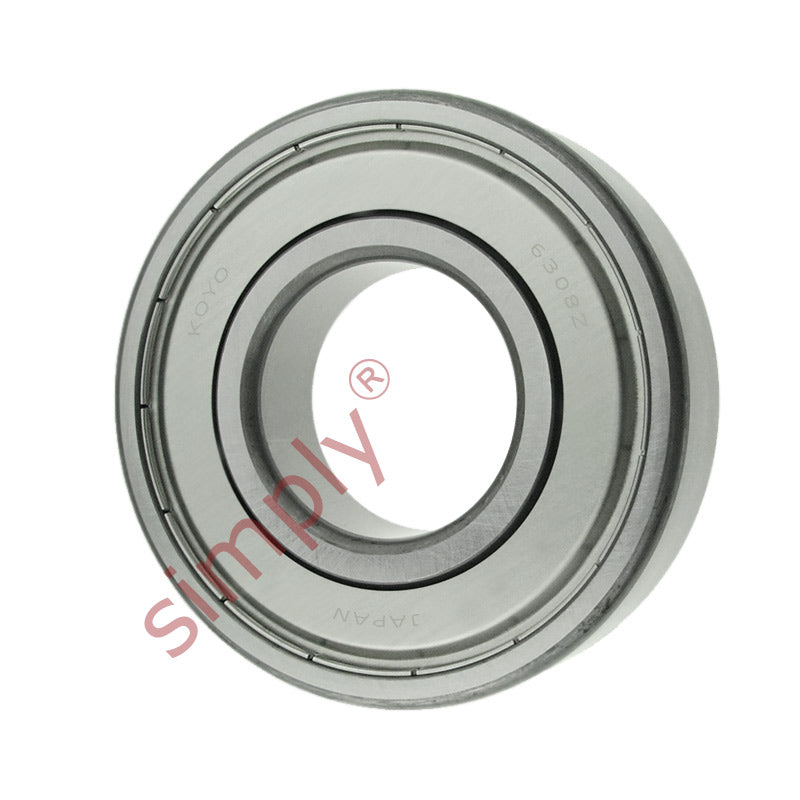

KOYO 63082Z Metal Shielded Deep Groove Ball Bearing 40x90x23mm
KOYO 63082Z Metal Shielded Deep Groove Ball Bearing 40x90x23mm
Regular price
CHF 29.00
ex VAT
Regular price
Sale price
CHF 29.00
ex VAT
Equivalent to: 6308ZZE 63082Z 6308.2Z 6308KDD 6308DD 63082ZR 6308FF 6308Z
In stock
Price Break
5+
CHF 22.71
9+
CHF 21.44
19+
CHF 21.18
29+
CHF 20.93
49+
CHF 20.67
74+
CHF 20.42
99+
CHF 19.14
199+
CHF 18.88
249+
CHF 18.63
499+
CHF 18.37
999+
CHF 17.86
Share this product
Description
Description
|
KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6308ZZE 63082Z 6308.2Z 6308KDD 6308DD 63082ZR 6308FF 6308Z
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| Inside Diameter d | 40mm |
|---|---|
| Outside Diameter D | 90mm |
| Width B | 23mm |
| Min radius r | 1.5mm |
| Dynamic load | 40.7 kN |
| Static load | 24 kN |
| Max speed in oil | 9200 rpm |
| Max speed in grease | 5100 rpm |
