SKU: 6314-2Z-HT-330

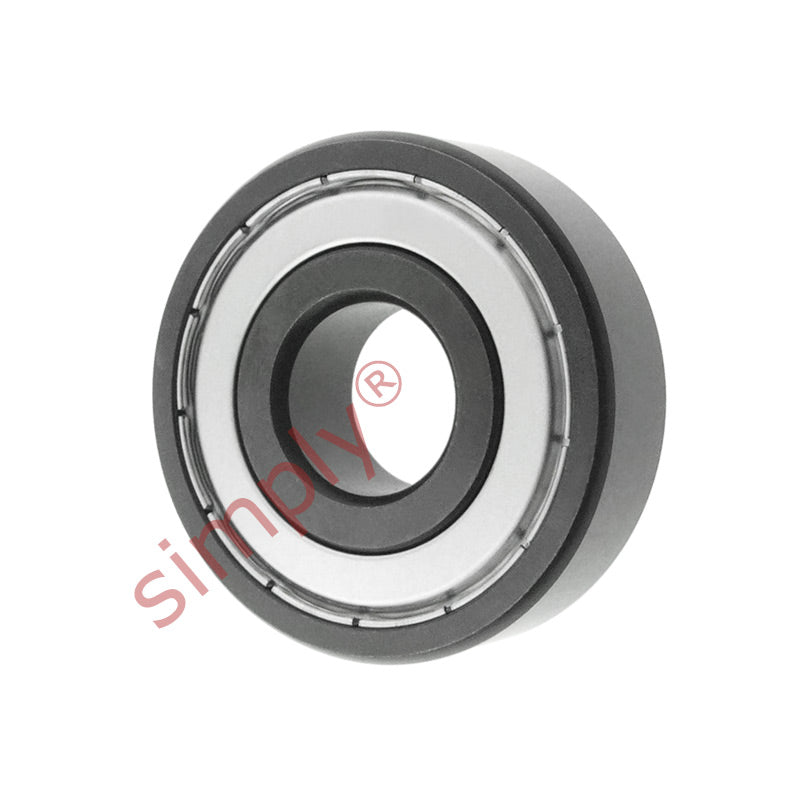

6314ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 70x150x35mm Max 45rpm
6314ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 70x150x35mm Max 45rpm
Regular price
CHF 72.00
ex VAT
Regular price
Sale price
CHF 72.00
ex VAT
Equivalent to: 63142ZVA201 63142ZVA208 63142ZVA228
In stock
Price Break
3+
CHF 56.62
5+
CHF 53.44
10+
CHF 52.80
15+
CHF 52.17
20+
CHF 51.53
30+
CHF 50.89
40+
CHF 47.71
50+
CHF 47.08
60+
CHF 46.44
75+
CHF 45.80
100+
CHF 44.53
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Equivalent: 63142ZVA201 63142ZVA208 63142ZVA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 70mm |
|---|---|
| Outside diameter D | 150mm |
| Width W | 35mm |
| Static load max | 39.1 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 45 rpm |
| Weight | 2500 g |
