SKU: 6316-2Z/VA208-SKF

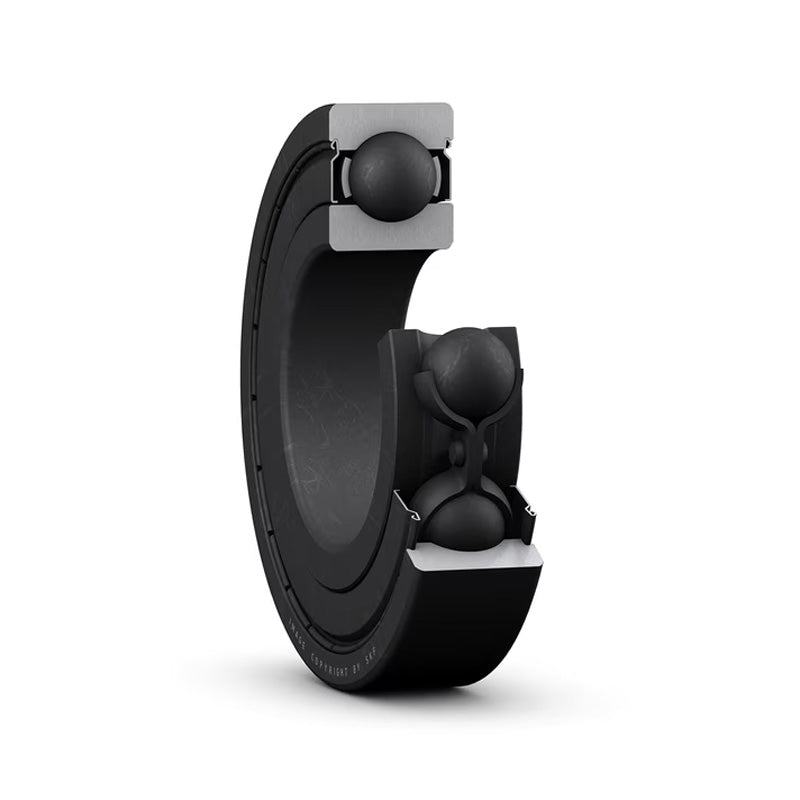

SKF 63162ZVA208 Single Row Deep Groove Ball Bearing High Temperature Type 80x170x39mm
SKF 63162ZVA208 Single Row Deep Groove Ball Bearing High Temperature Type 80x170x39mm
Regular price
CHF 671.91
ex VAT
Regular price
Sale price
CHF 671.91
ex VAT
In stock
Price Break
10+
CHF 598.00
19+
CHF 564.40
29+
CHF 557.69
39+
CHF 550.97
49+
CHF 544.25
74+
CHF 537.53
99+
CHF 503.93
199+
CHF 497.21
249+
CHF 490.49
499+
CHF 483.78
999+
CHF 470.34
Couldn't load pickup availability
Description
Description
|
SKF VA208 Series High Temperature Bearings: Supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 39mm |
| d1 | 108mm |
| D2 | 147mm |
| r1r2 | 2.1mm |
| Basic load rating Co | 86.5 kN |
| Weight | 3.55 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
