SKU: GRAE30-NPP-B-INA

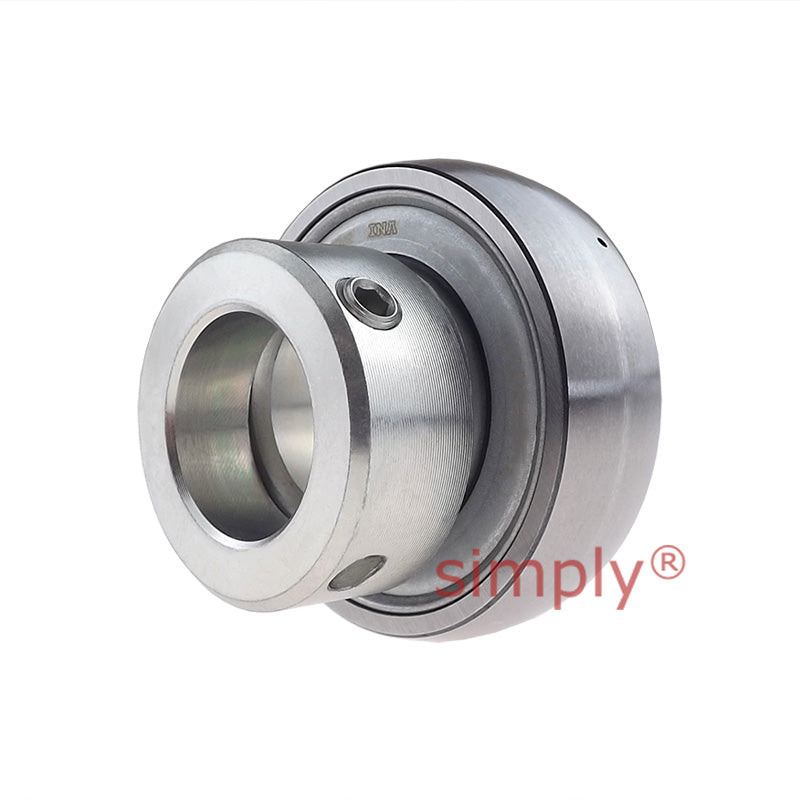

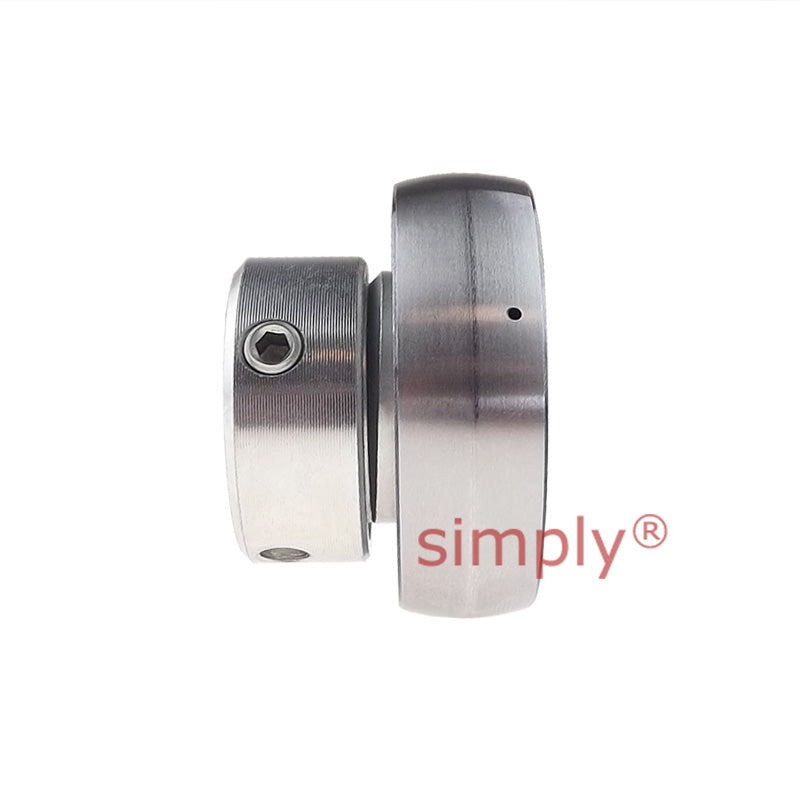

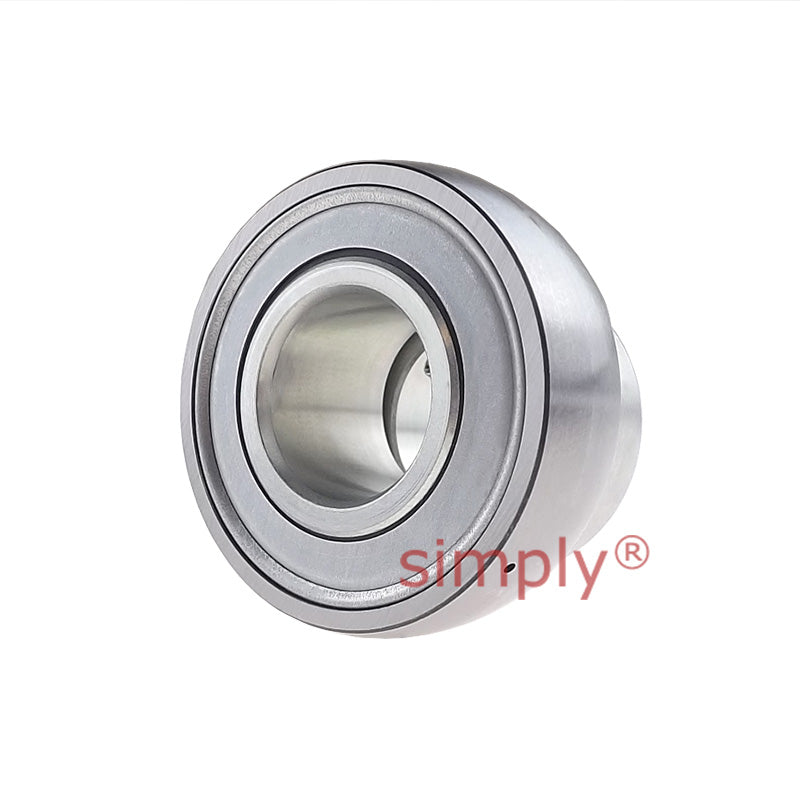

INA GRAE30XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 30x62x35.8mm
INA GRAE30XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 30x62x35.8mm
Regular price
CHF 30.00
ex VAT
Regular price
Sale price
CHF 30.00
ex VAT
In stock
Price Break
3+
CHF 23.34
5+
CHF 22.02
10+
CHF 21.76
15+
CHF 21.50
20+
CHF 21.24
30+
CHF 20.98
40+
CHF 19.67
50+
CHF 19.40
60+
CHF 19.14
75+
CHF 18.88
100+
CHF 18.35
Description
Description
|

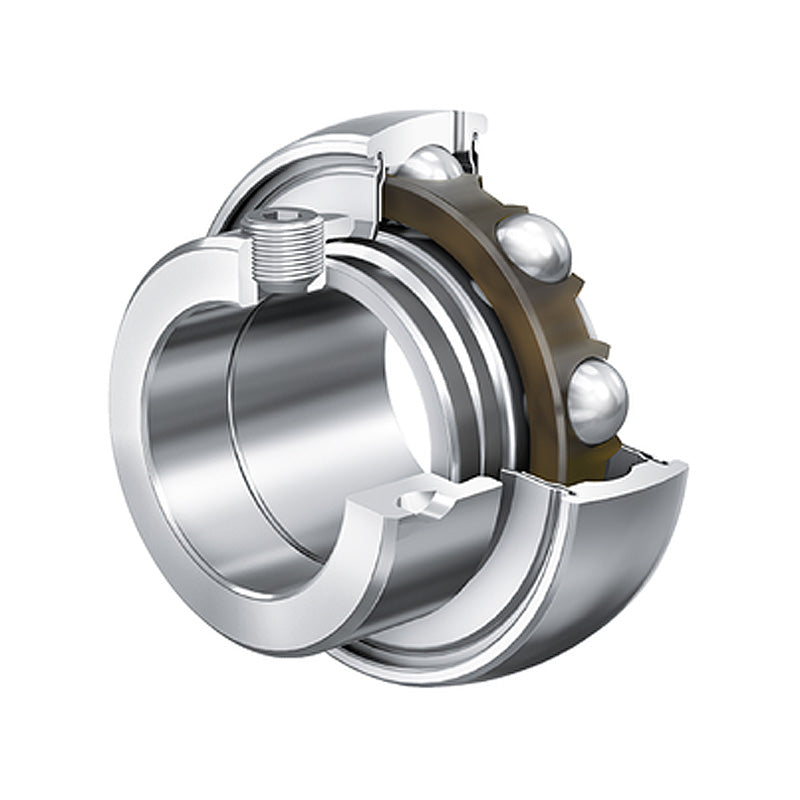

INA GRAE..-NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 35.8mm
Technical
Technical
| d | 30mm |
|---|---|
| Dsp | 62mm |
| B1 | 35.8mm |
| B | 23.8mm |
| C | 18mm |
| Ca | 4.7mm |
| d2 | 37.4mm |
| d3 max | 44mm |
| S | 9mm |
| W | 4mm |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Weight | 0.32 kg |
