• SKF HA207 Imperial Adaptor Sleeve for 1-3/16 inch Shaft
1 1

SKU: HA207-SKF

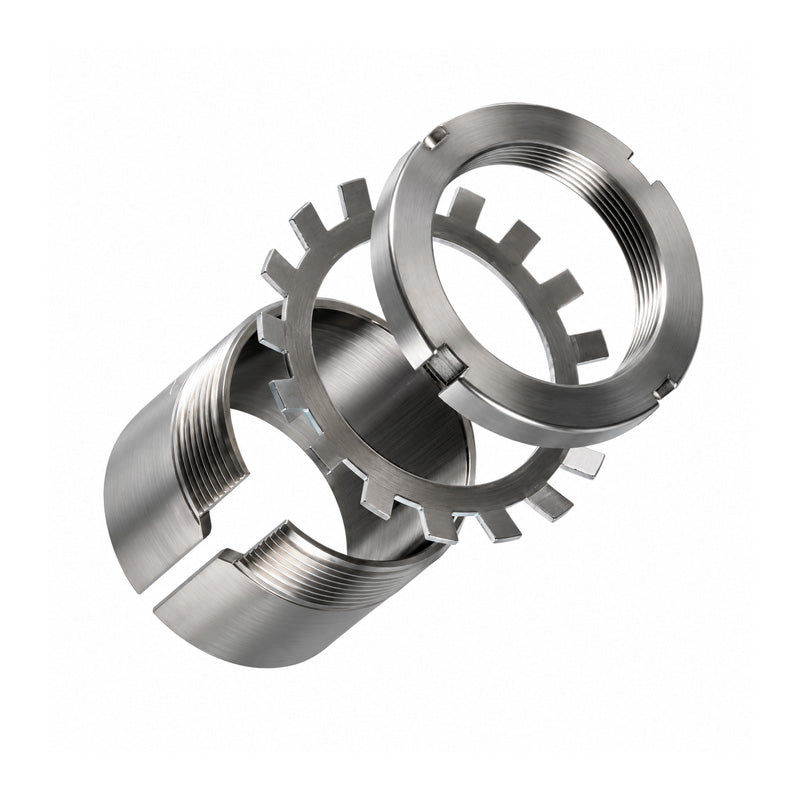

SKF HA207 Imperial Adaptor Sleeve for 1-3/16 inch Shaft

SKF HA207 Imperial Adaptor Sleeve for 1-3/16 inch Shaft
CHF 127.00 ex VAT
CHF 127.00 ex VAT
Sale Sold out

In stock

Price Break
2+ CHF 101.14
5+ CHF 95.46
10+ CHF 94.32
20+ CHF 93.19
49+ CHF 92.05
74+ CHF 90.91
99+ CHF 85.23
199+ CHF 84.09
249+ CHF 82.96
499+ CHF 81.82
999+ CHF 79.55
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
30.16mm = 1.187 (1-3/16) inch
Outside Diameter:
52mm
Width:
29mm
Technical
--- Dimensions
d1 30.16mm (1-3/16)inch
d 35mm
d3 52mm
B1 29mm
B2 9mm
G Thread 35x1.5mm
Weight 0.12 kg
--- Assembly Parts
Sleeve HA207
Nut KM7
Washer MB7
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1207K+taper>1207K</a>
