SKU: HFL.2530.EU

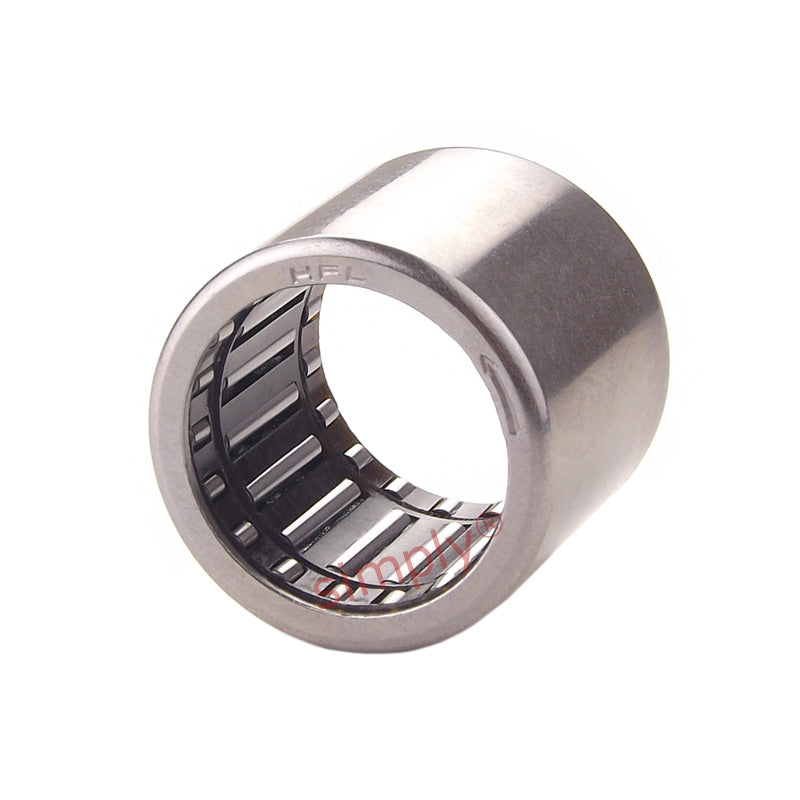

HFL2530 Needle Roller Clutch Type One Way Bearing 25x32x30mm
HFL2530 Needle Roller Clutch Type One Way Bearing 25x32x30mm
Regular price
CHF 12.00
ex VAT
Regular price
Sale price
CHF 12.00
ex VAT
In stock
Price Break
10+
CHF 8.92
19+
CHF 8.42
29+
CHF 8.32
39+
CHF 8.22
49+
CHF 8.12
74+
CHF 8.02
99+
CHF 7.52
199+
CHF 7.41
249+
CHF 7.31
499+
CHF 7.21
999+
CHF 7.01
Share this product
Description
Description
|
Budget Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 30mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 32mm |
| C | 30mm |
| Tolerance | 0.3mm |
| r min | 0.3 |
| Torque | 66 N m |
| Speed (rotating shaft) | 5500 rpm |
| Speed (rotating outer ring) | 5500 rpm |
| Weight | 44 g |
