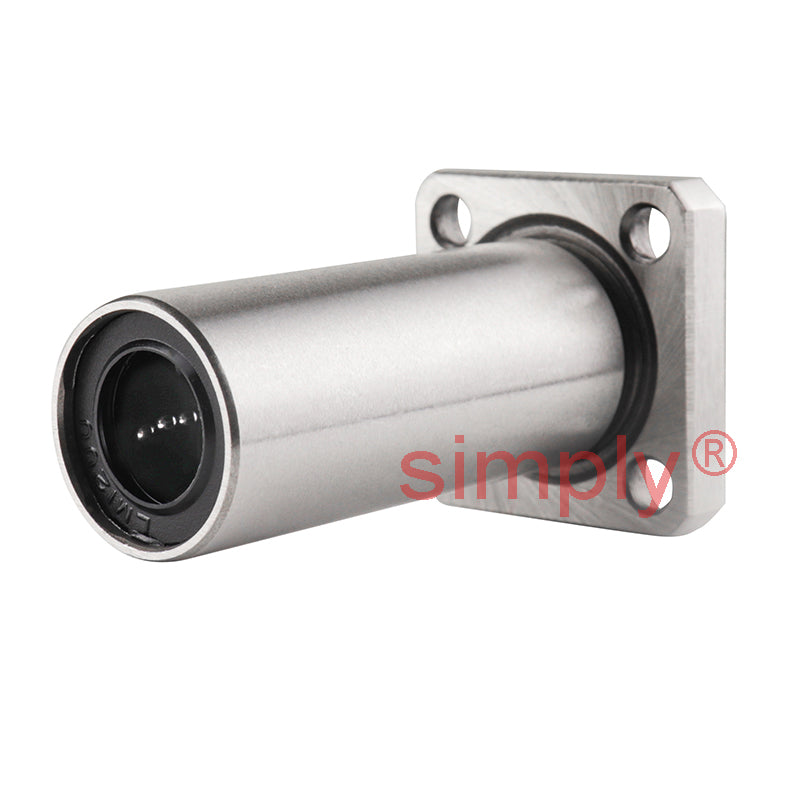

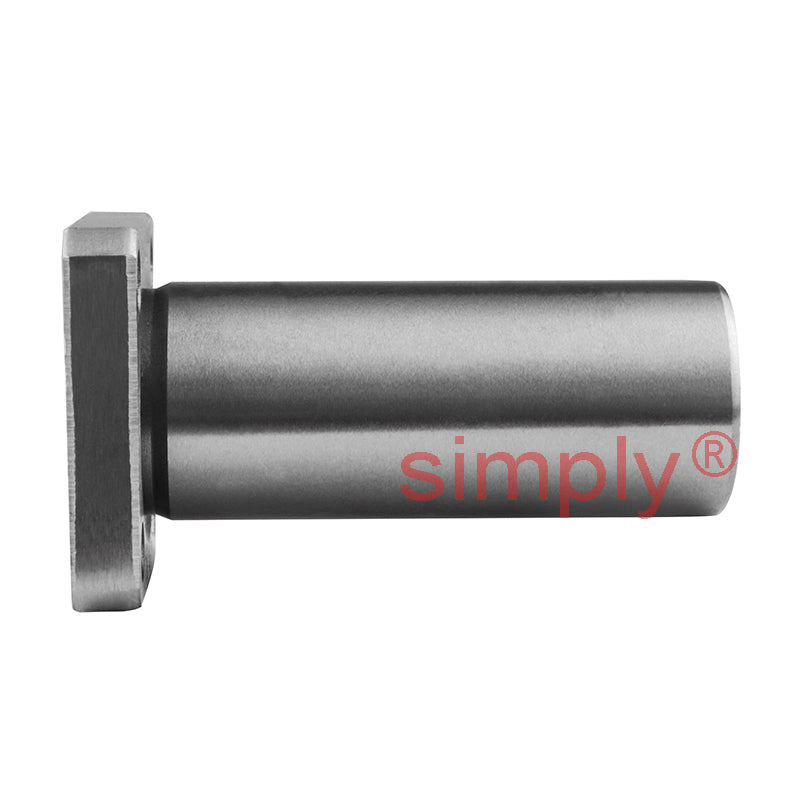

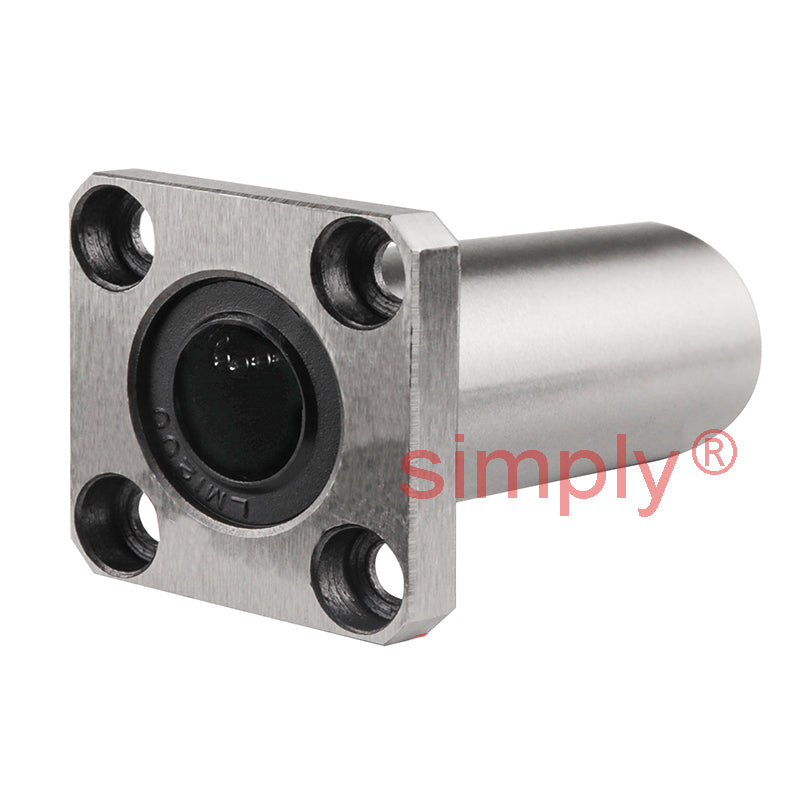

LMK12LUU Long Series Metric Square Flanged Linear Ball Bushing 12x21x57mm

LMKL Flanged Linear Ball Bushing: These linear ball bushings are characterised by their pre-drilled square housing and extended length. The LMKL offers smooth movement, high rigidity and low friction also they are easy to maintain or replace and have a good lifespan in service. They consist of a Steel outer housings with sets of balls running around their own tracks. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. Linear bushings are widely used in Precision equipment; Measuring equipment, Auto recording equipment, and 3D measuring equipment, and Linear Motion systems in Machine for Mass Production; Multi-Axis Drilling machines, Punching Press, Tool Grinders, Auto-Gas cutters, printing machines, card selectors and food packing machines. The smaller units often found in Computer and peripheral equipment.
Benefits: Low friction, low maintenance, rubber seal limits moisture and dirt ingress, cost-effective solution

Brand / Quality:

EU Budget - Economy Quality

Inside Diameter:

12mm

Outside Diameter:

21mm

Length:

57mm

Seals / Shields:

Rubber Sealed
