SKU: MSFT25-RHP

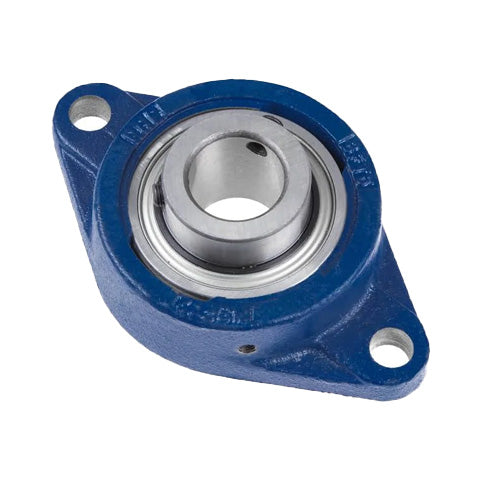

RHP MSFT25 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
RHP MSFT25 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
Regular price
CHF 78.00
ex VAT
Regular price
Sale price
CHF 78.00
ex VAT
In stock
Price Break
10+
CHF 61.81
20+
CHF 58.34
30+
CHF 57.64
40+
CHF 56.95
50+
CHF 56.25
75+
CHF 55.56
100+
CHF 52.09
200+
CHF 51.39
250+
CHF 50.70
500+
CHF 50.00
1000+
CHF 48.61
Share this product
Description
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- MSFT
- Bolt Hole Centres:
- 116.5mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 82.6mm |
| H | 141.3mm |
| J | 116.5mm |
| G | 10mm |
| A | 29.8mm |
| A1 | 42.21mm |
| A4 | 12.7mm |
| B | 38.1mm |
| s | 15.93 |
| d1 | 40mm |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-25G+insonly">1030-25G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
