SKU: N204ECP-SKF

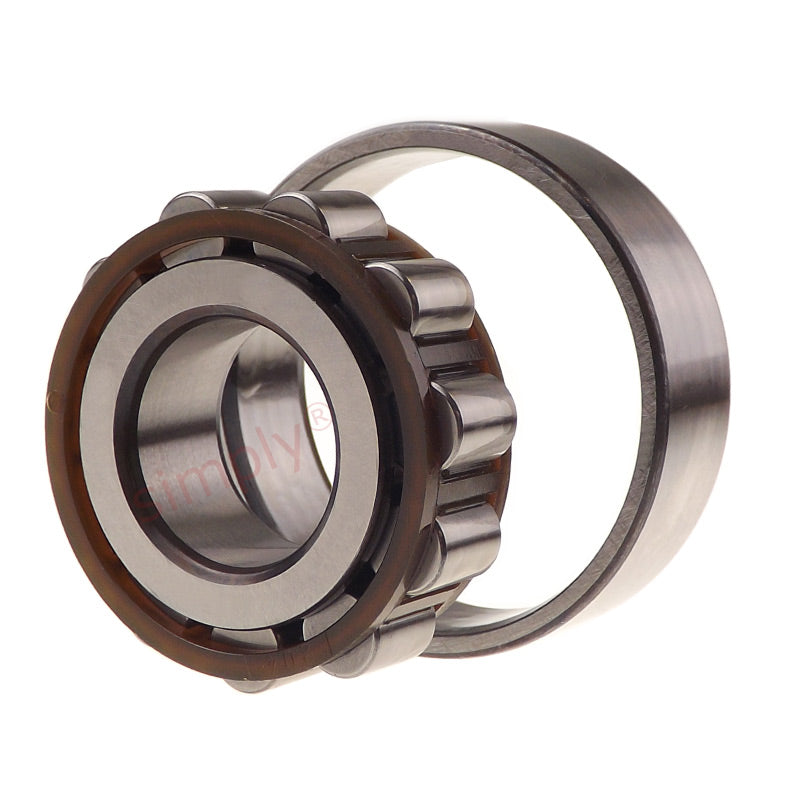

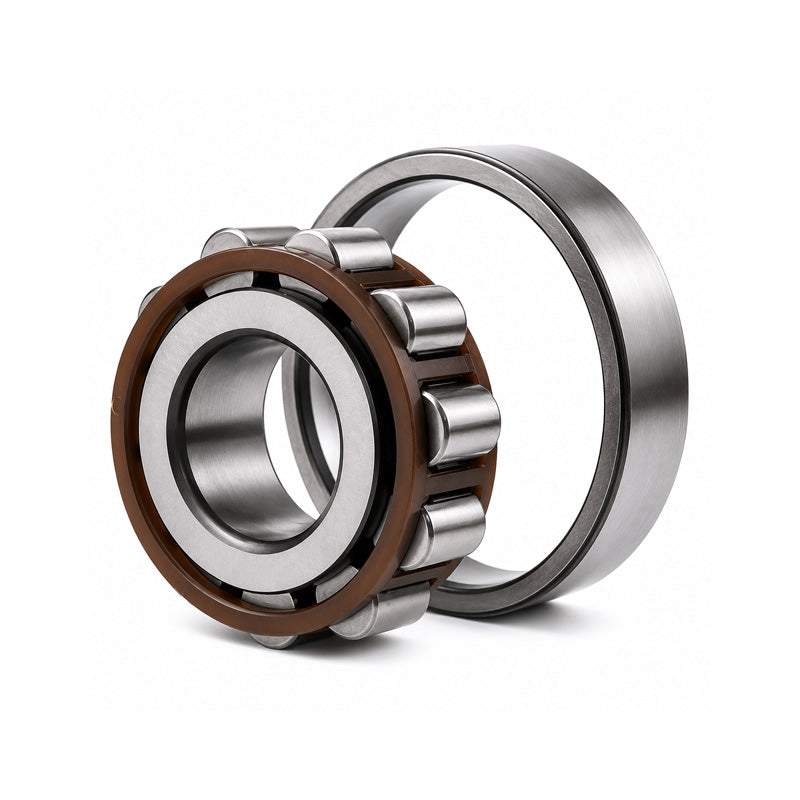

SKF N204ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 20x47x14mm
SKF N204ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 20x47x14mm
Regular price
CHF 47.98
ex VAT
Regular price
Sale price
CHF 47.98
ex VAT
In stock
Price Break
10+
CHF 42.70
19+
CHF 40.30
29+
CHF 39.82
39+
CHF 39.34
49+
CHF 38.86
74+
CHF 38.38
99+
CHF 35.99
199+
CHF 35.51
249+
CHF 35.03
499+
CHF 34.55
999+
CHF 33.59
Couldn't load pickup availability
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 14mm |
| Dynamic load C | 25.1 kN |
| Static load Co | 22 kN |
| Fatigue load limit Pu | 2.75 kN |
| Reference speed | 16000 rpm |
| Limiting speed | 19000 rpm |
| Weight | 0.11 kg |
| d1 | 29.7mm |
| F,E | 41.5mm |
| r1r2 min | 1mm |
| r3r4 min | 0.6mm |
| S | 1mm |
| da min | 25.6mm |
| da max | 40mm |
| db | 43mm |
| Da max | 42.8mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.15 |
