SKU: NAO15x32x12-MB

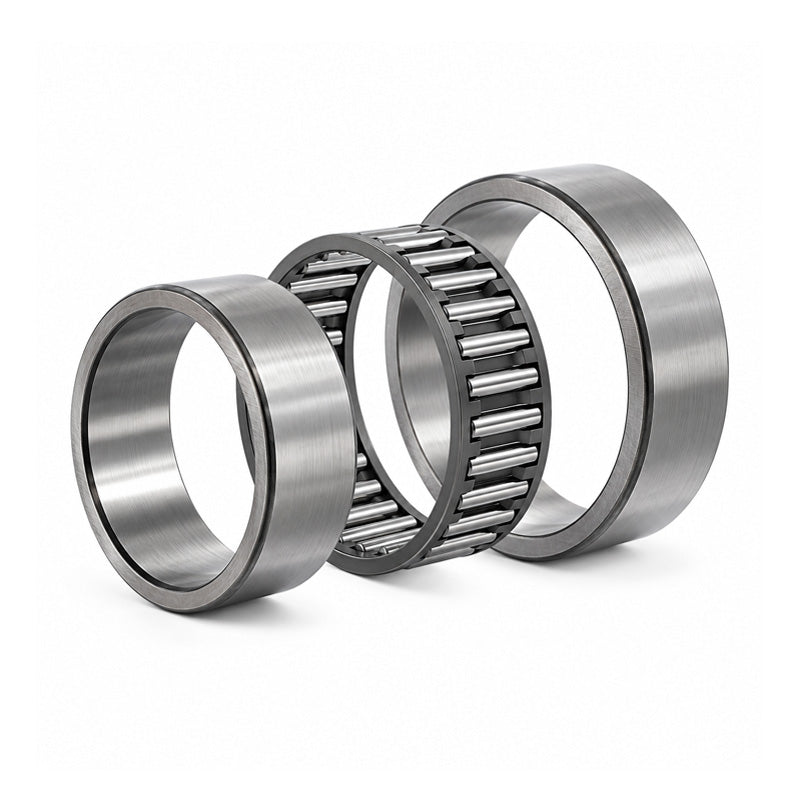

Major Brand NAO15x32x12 Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO15x32x12 Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
CHF 30.00
ex VAT
Regular price
Sale price
CHF 30.00
ex VAT
In stock
Price Break
10+
CHF 23.72
19+
CHF 22.38
29+
CHF 22.12
39+
CHF 21.85
49+
CHF 21.58
74+
CHF 21.32
99+
CHF 19.99
199+
CHF 19.72
249+
CHF 19.45
499+
CHF 19.19
999+
CHF 18.65
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 12mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 32mm |
| B | 12mm |
| Dynamic load | 12800 N |
| Static load | 16300 N |
| Fatigue load limit Pu | 1960 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| E | 26mm |
| F | 20mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 25.6mm |
| db | 19.5mm |
| Da | 26.5mm |
| Db | 20.6mm |
| ra max | 0.3mm |
| Weight | 50 g |
