SKU: NKIB5903-EU

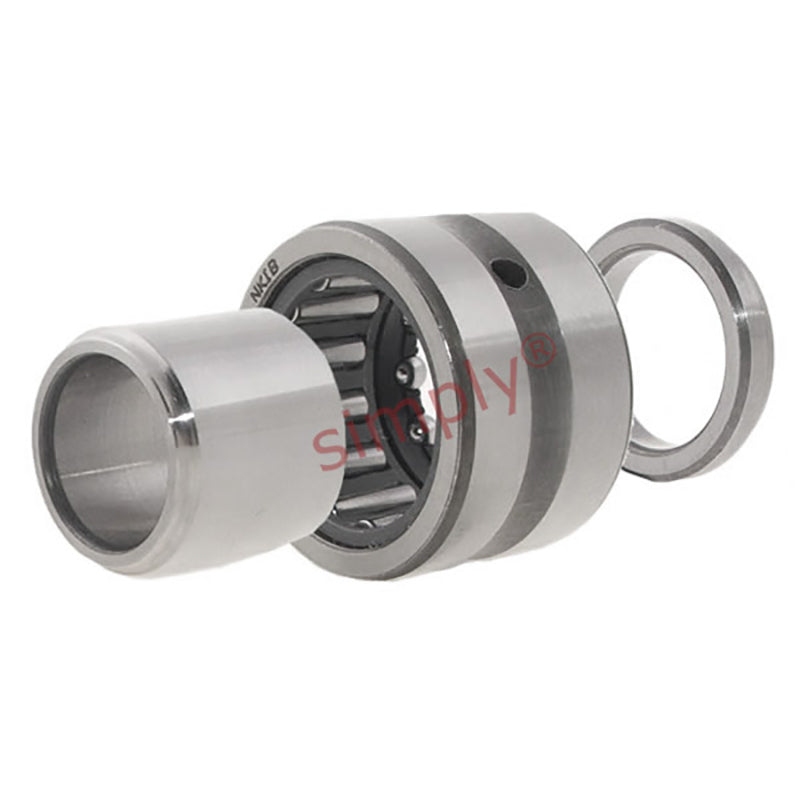

NKIB5903 Budget Needle Roller / Angular Contact Ball Bearing 17x30x20mm
NKIB5903 Budget Needle Roller / Angular Contact Ball Bearing 17x30x20mm
Regular price
CHF 14.41
ex VAT
Regular price
Sale price
CHF 14.41
ex VAT
In stock
Price Break
10+
CHF 12.82
19+
CHF 12.10
29+
CHF 11.96
39+
CHF 11.82
49+
CHF 11.67
74+
CHF 11.53
99+
CHF 10.81
199+
CHF 10.66
249+
CHF 10.52
499+
CHF 10.38
999+
CHF 10.09
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 20mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 30mm |
| B | 20mm |
| C | 18mm |
| Radial dynamic load | 11700 N |
| Radial static load | 17000 N |
| Axial dynamic load | 2240 N |
| Axial static load | 2740 N |
| Fatigue load limit radial Pu | 1960 N |
| Fatigue load limit axial Pu | 116 N |
| Speed in grease | 12000 rpm |
| Speed in oil | 18000 rpm |
| F | 22mm |
| r1r2 | 0.3mm |
| da min | 19mm |
| Da max | 28mm |
| ra max | 0.3mm |
| Weight | 58 g |
