SKU: NUKR180H/3AS-NTN

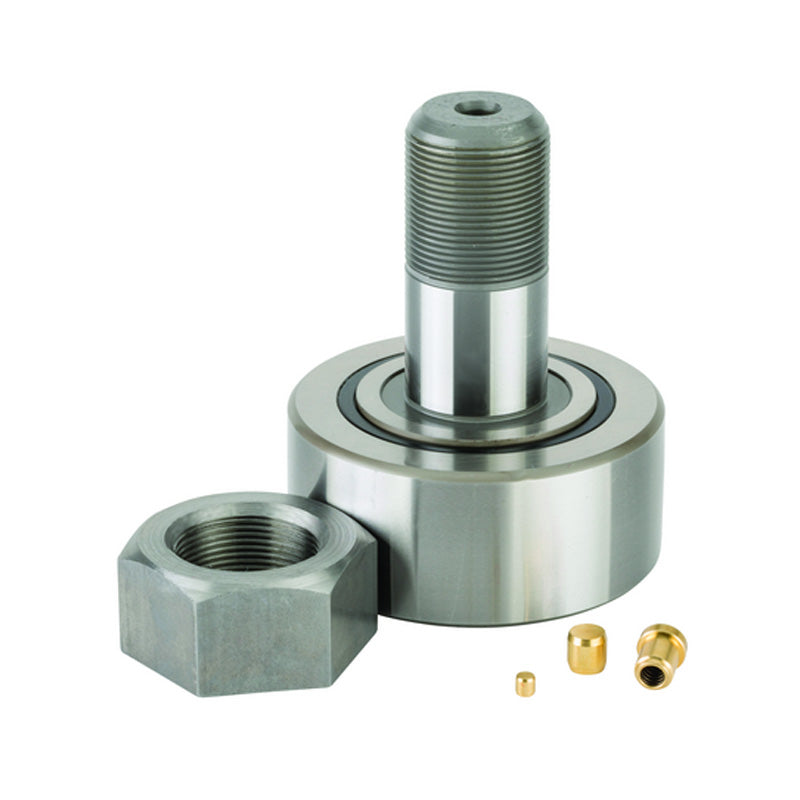

NTN NUKR180H/3AS Hex Head Crowned Cam Follower 180x72x64mm M64X3 Thread - Allow 2-3 Days
NTN NUKR180H/3AS Hex Head Crowned Cam Follower 180x72x64mm M64X3 Thread - Allow 2-3 Days
Regular price
CHF 5,060.00
ex VAT
Regular price
Sale price
CHF 5,060.00
ex VAT
In stock
Price Break
3+
CHF 4,302.30
4+
CHF 4,075.87
9+
CHF 3,849.43
19+
CHF 3,622.99
49+
CHF 3,532.42
99+
CHF 3,441.84
499+
CHF 2,988.97
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
NTN Cam Followers: These Cam Followers are engineered to deliver reliable, long-lasting performance in demanding linear motion and rotary applications. Designed with a thick outer ring, high-quality needle rollers, and robust internal construction, these cam followers offer exceptional load capacity, smooth rotation, and superior wear resistance. Ideal for use in automated machinery, conveyors, indexing equipment, and cam-driven systems, NTN Cam Followers provide consistent accuracy and dependable operation even under heavy or shock loads. Their sealed design helps protect against contamination and reduces maintenance requirements, ensuring long service life. Benefits: High load capacity, high durability, low friction operation |
- Brand / Quality:
- NTN - High Quality
- Outside Diameter:
- 180mm
- Width:
- 72mm
- Pitch:
- M64X3
Technical
Technical
| D - Outside diameter | 180mm |
|---|---|
| d1 - Stud diameter | 64mm |
| C - Outer ring width | 72mm |
| F - Under roller diameter | 91.5mm |
| B - Bearing / Inner ring width | 76mm |
| B1 - Total stud length | 200mm |
| B2 - Stud rod length | 121mm |
| G - Stud thread designation | M64X3 |
| G1 - Thread length | 65mm |
| C1 - Distance between roller and washer face | 2mm |
| m - Designation of threaded lubrication hole | Rc 1/8mm |
| e - Inlet diameter | 103.5mm |
| h - Hexagonal hole diameter | 17mm |
| R - Track roller radius | 500mm |
| Maximum tightening torque | 3670 n-m |
| Bearing with/without cage | Without |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 365 kN |
| C0r - Static load rating | 555 kN |
| Track load capacity | 27.9 kN |
| N - Grease lubrication limit speed | 1000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
