SKU: NX30Z-MB

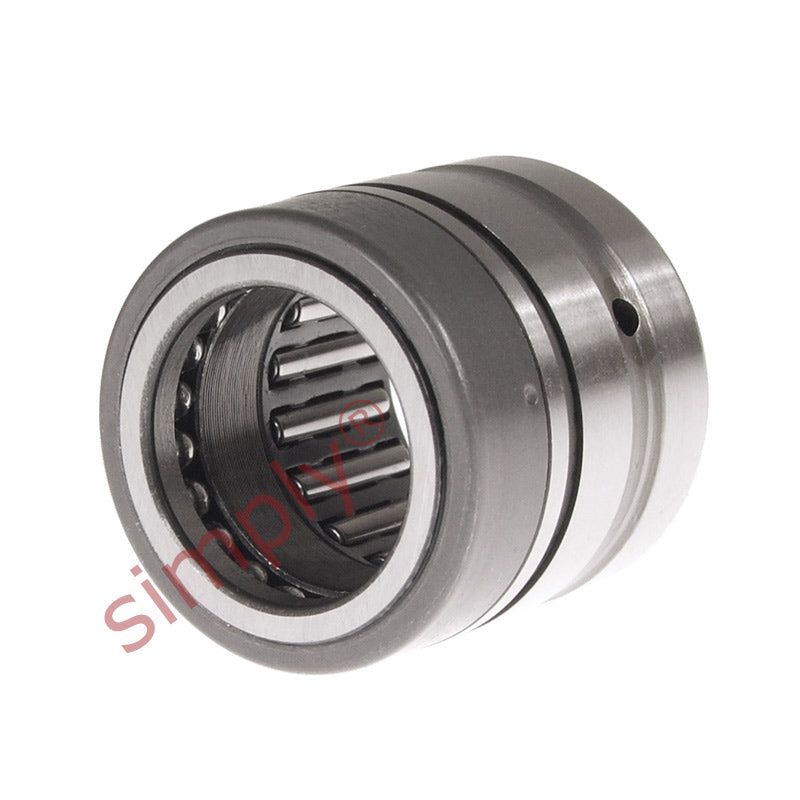

Major Brand NX30Z Needle Roller / Full Complement Thrust Ball Bearing 30x42x30mm
Major Brand NX30Z Needle Roller / Full Complement Thrust Ball Bearing 30x42x30mm
Regular price
CHF 94.00
ex VAT
Regular price
Sale price
CHF 94.00
ex VAT
In stock
Price Break
10+
CHF 74.31
19+
CHF 70.14
29+
CHF 69.30
39+
CHF 68.47
49+
CHF 67.63
74+
CHF 66.80
99+
CHF 62.62
199+
CHF 61.79
249+
CHF 60.95
499+
CHF 60.12
999+
CHF 58.45
Share this product
Description
Description
NX..Z Series Needle Roller / Ball Thrust Combination: Of a non separable design has a closed cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to grease lubrication and the cover serves to retain the grease. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 42mm
- Width:
- 30mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 42mm |
| C | 30mm |
| Dynamic load | 22900 N |
| Static load | 39000 N |
| Axial dynamic load | 12700 N |
| Axial static load | 32500 N |
| Fatigue load limit radial Pu | 4800 N |
| Fatigue load limit axial Pu | 1200 N |
| Min load factor A | 5.5 |
| Speed in grease | 4000 rpm |
| C1 | 10mm |
| d | 30mm |
| r1r2 min | 0.3mm |
| da | 36.5mm |
| Da max | 40mm |
| Ca | 14.2mm |
| ra max | 0.3mm |
| di | 25mm |
| F | 30mm |
| Bi | 20mm |
| Inner Ring | IR25x30x20 |
| Retaining Ring | SW42 |
| Weight | 130 g |
