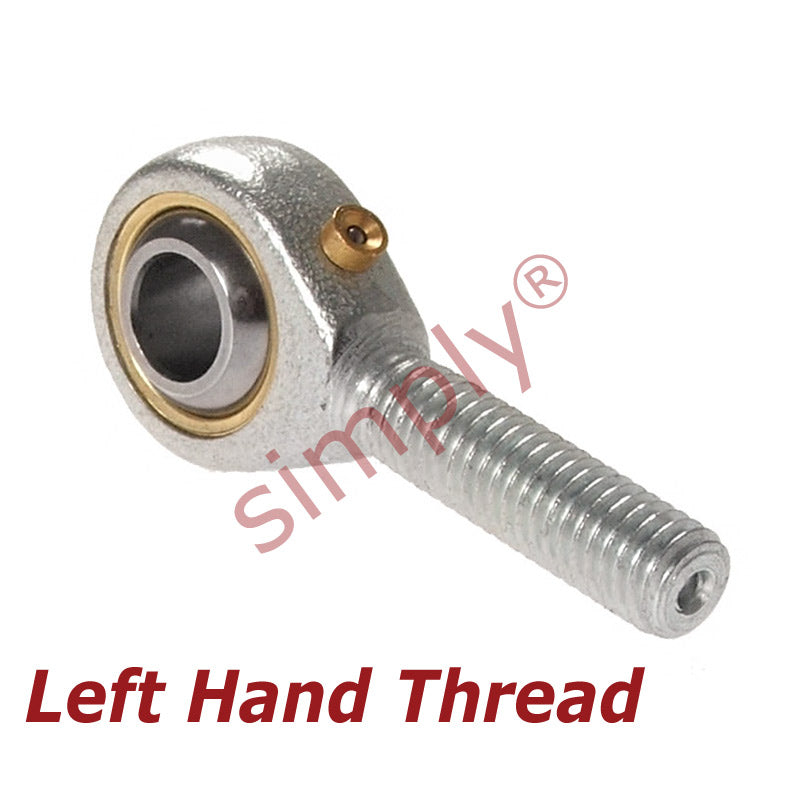

Budget POS12/F2L Left Hand Steel / Bronze Lined Plain Male Rod End 12mm Bore M12x1.25 Thread
Budget POS12/F2L Left Hand Steel / Bronze Lined Plain Male Rod End 12mm Bore M12x1.25 Thread
Regular price
CHF 20.00
ex VAT
Regular price
Sale price
CHF 20.00
ex VAT
In stock
Price Break
10+
CHF 15.20
19+
CHF 14.35
29+
CHF 14.18
39+
CHF 14.01
49+
CHF 13.84
74+
CHF 13.67
99+
CHF 12.81
199+
CHF 12.64
249+
CHF 12.47
499+
CHF 12.30
999+
CHF 11.96
Description
Description
|
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M12x1.25
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 12mm
- Material:
- Bronze Lined
Technical
Technical
| d | 12mm |
|---|---|
| B | 16mm |
| r1 | 0.6mm |
| C1 | 12mm |
| d1 max | 15.4mm |
| d2 | 30mm |
| d3 | M12x1.25 |
| h | 54mm |
| l1 | 33mm |
| l2 | 69mm |
| Ball diameter | 7/8 inch |
| Dynamic load Cr | 13.3 kN |
| Static load Cor | 17.3 kN |
| Max angle α | 13 |
| Weight | 0.085 kg |
