SKU: POS14/F1L.EU

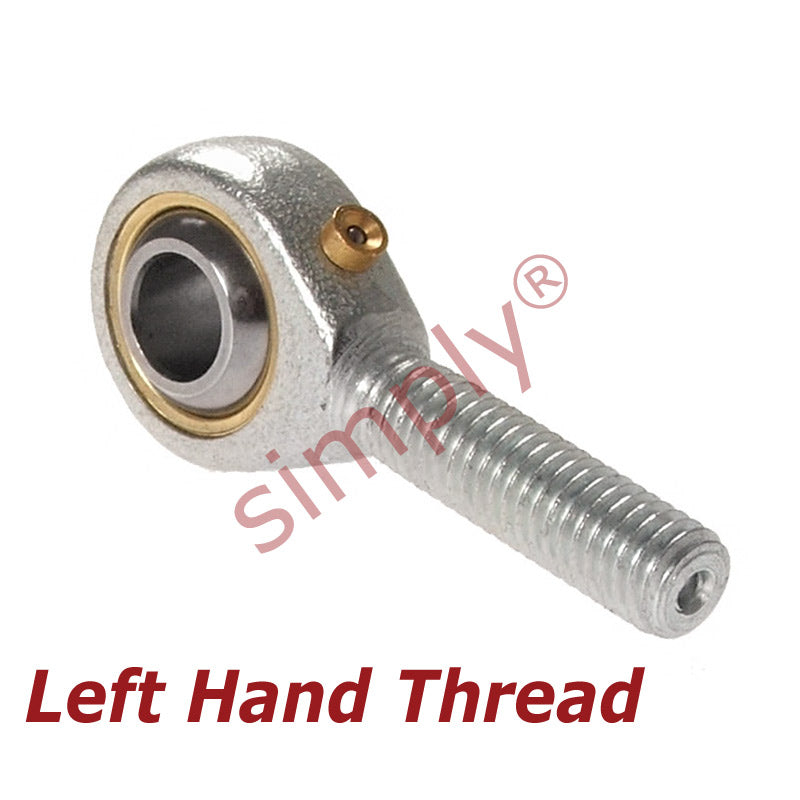

Budget POS14/F1L Left Hand Steel / Bronze Lined Plain Male Rod End 14mm Bore M14x1.5 Thread
Budget POS14/F1L Left Hand Steel / Bronze Lined Plain Male Rod End 14mm Bore M14x1.5 Thread
Regular price
CHF 31.00
ex VAT
Regular price
Sale price
CHF 31.00
ex VAT
In stock
Price Break
10+
CHF 24.68
19+
CHF 23.29
29+
CHF 23.01
39+
CHF 22.74
49+
CHF 22.46
74+
CHF 22.18
99+
CHF 20.80
199+
CHF 20.52
249+
CHF 20.24
499+
CHF 19.96
999+
CHF 19.41
Description
Description
|
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M14x1.5
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 14mm
- Material:
- Bronze Lined
Technical
Technical
| d | 14mm |
|---|---|
| B | 19mm |
| r1 | 0.6mm |
| C1 | 13.5mm |
| d1 max | 16.8mm |
| d2 | 34mm |
| d3 | M14x1.5 |
| h | 60mm |
| l1 | 36mm |
| l2 | 77mm |
| Ball diameter | 1 inch |
| Dynamic load Cr | 17.1 kN |
| Static load Cor | 21.3 kN |
| Max angle α | 16 |
| Weight | 0.126 kg |
