SKU: RABRB30/72-FA106-INA

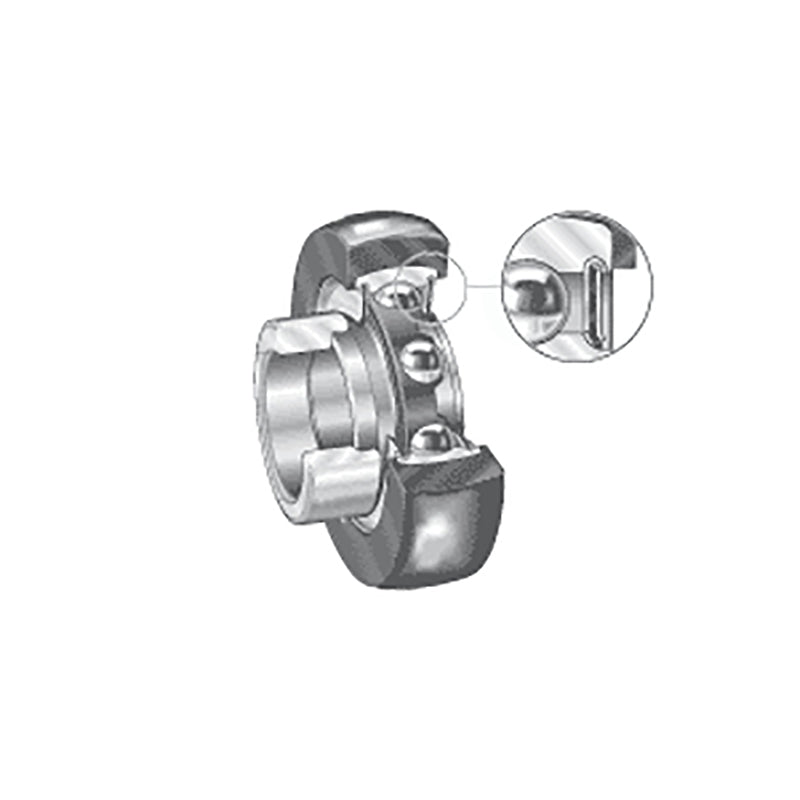

INA RABRB30/72XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x72.2x38.2mm
INA RABRB30/72XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x72.2x38.2mm
Regular price
CHF 56.00
ex VAT
Regular price
Sale price
CHF 56.00
ex VAT
In stock
Price Break
10+
CHF 49.84
19+
CHF 47.04
29+
CHF 46.48
39+
CHF 45.92
49+
CHF 45.36
74+
CHF 44.80
99+
CHF 42.00
199+
CHF 41.44
249+
CHF 40.88
499+
CHF 40.32
999+
CHF 39.20
Couldn't load pickup availability
Description
Description
|
INA RABRA and RABRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72.2mm
- Width:
- 38.2mm
- Type:
- Spherical Outer
Technical
Technical
| d | 30mm |
|---|---|
| D | 72.2mm |
| B2 | 38.2mm |
| B1 | 35.8mm |
| C | 23mm |
| D2 | 54mm |
| d3 max | 44mm |
| S1 | 26.7mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 70 deg |
| Rubber ring: load carrying capacity Cg | 1980 N |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Designation of rubber interliner | RABR62/72 |
| Designation of bearing | RAE30-NPP-B-FA106 |
| Weight | 0.38 kg |
