SKU: RABRB40/85-FA106-INA
INA RABRB40/85XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 40x85x46.3mm
INA RABRB40/85XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 40x85x46.3mm
Regular price
CHF 63.49
ex VAT
Regular price
Sale price
CHF 63.49
ex VAT
In stock
Price Break
10+
CHF 56.51
19+
CHF 53.33
29+
CHF 52.70
39+
CHF 52.06
49+
CHF 51.43
74+
CHF 50.79
99+
CHF 47.62
199+
CHF 46.98
249+
CHF 46.35
499+
CHF 45.71
999+
CHF 44.44
Couldn't load pickup availability
Description
Description
|

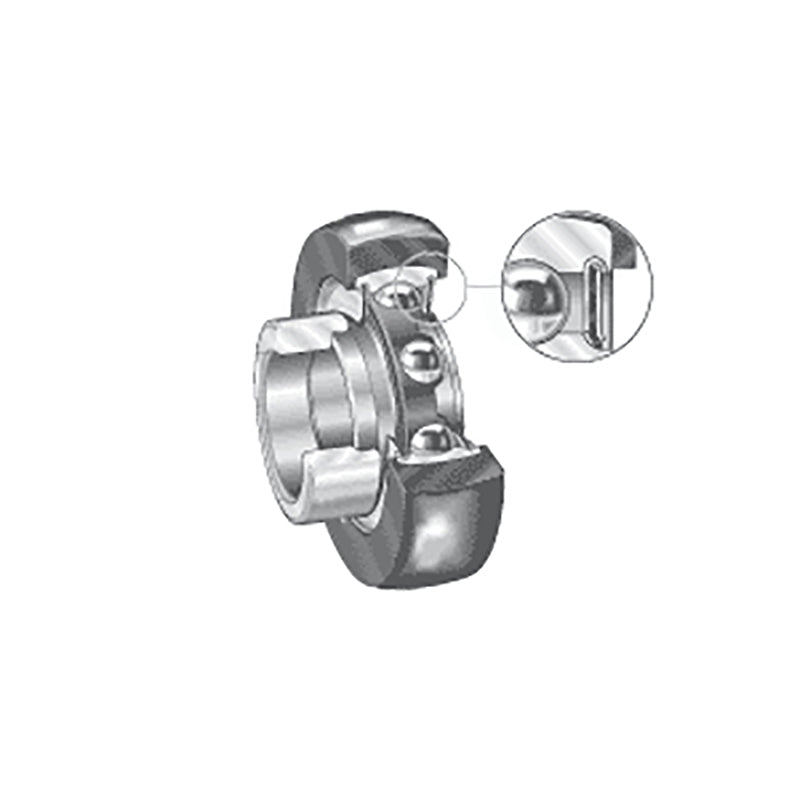

INA RABRA and RABRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 85mm
- Width:
- 46.3mm
- Type:
- Spherical Outer
Technical
Technical
| d | 40mm |
|---|---|
| D | 85mm |
| B2 | 46.3mm |
| B1 | 43.8mm |
| C | 27mm |
| D2 | 70mm |
| d3 max | 58mm |
| S1 | 32.7mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 70 deg |
| Rubber ring: load carrying capacity Cg | 3500 N |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Designation of rubber interliner | RABR80/85 |
| Designation of bearing | RAE40-NPP-B-FA106 |
| Weight | 0.73 kg |
