SKU: RNA4924-EU

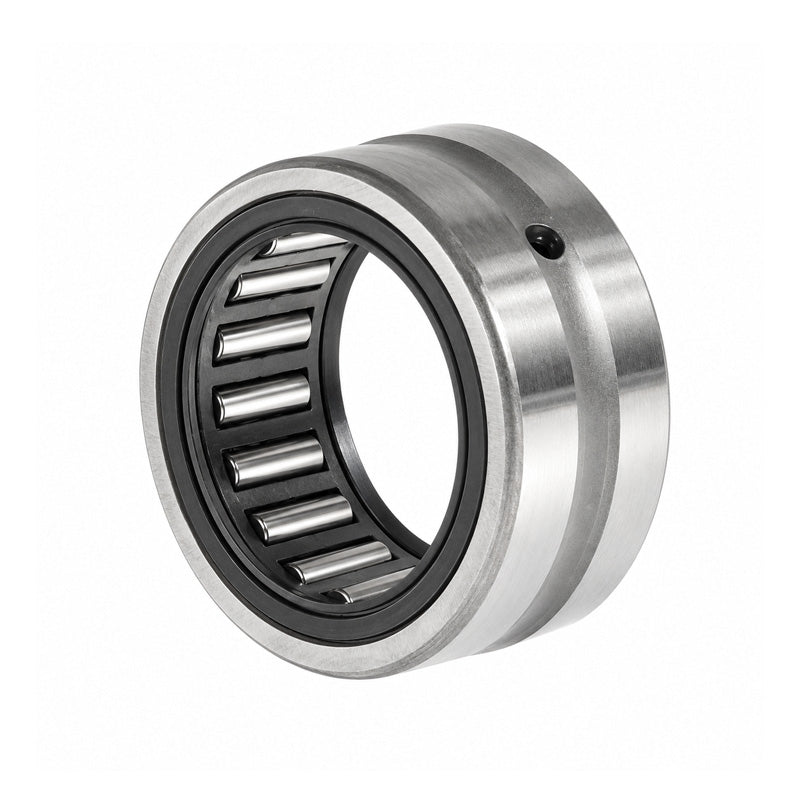

RNA4924 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 135x165x45mm
RNA4924 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 135x165x45mm
Regular price
CHF 213.00
ex VAT
Regular price
Sale price
CHF 213.00
ex VAT
In stock
Price Break
10+
CHF 169.62
19+
CHF 160.09
29+
CHF 158.19
39+
CHF 156.28
49+
CHF 154.38
74+
CHF 152.47
99+
CHF 142.94
199+
CHF 141.03
249+
CHF 139.13
499+
CHF 137.22
999+
CHF 133.41
Share this product
Description
Description
|
Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 135mm
- Outside Diameter:
- 165mm
- Width:
- 45mm
Technical
Technical
| Fw | 135mm |
|---|---|
| D | 165mm |
| C | 45mm |
| Dynamic load C | 176000 N |
| Static load Co | 405000 N |
| Fatigue load limit Pu | 47500 N |
| Speed in grease | 1900 rpm |
| Speed in oil | 3000 rpm |
| r1r2 | 1.1mm |
| Da max | 158.5mm |
| ra max | 1mm |
| Weight | 1850 g |
