SKU: SAKB20F-SKF

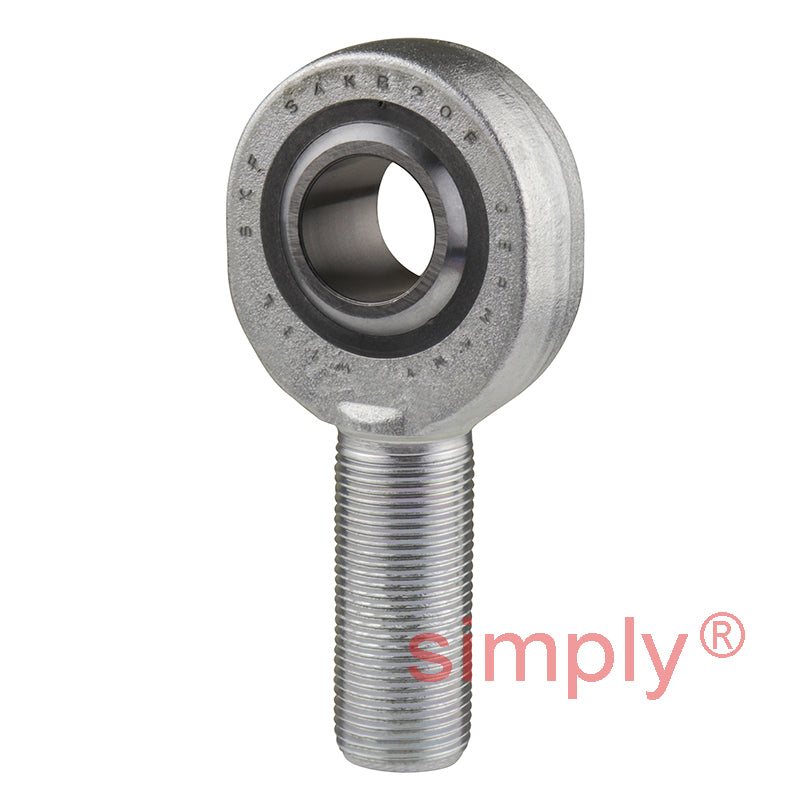

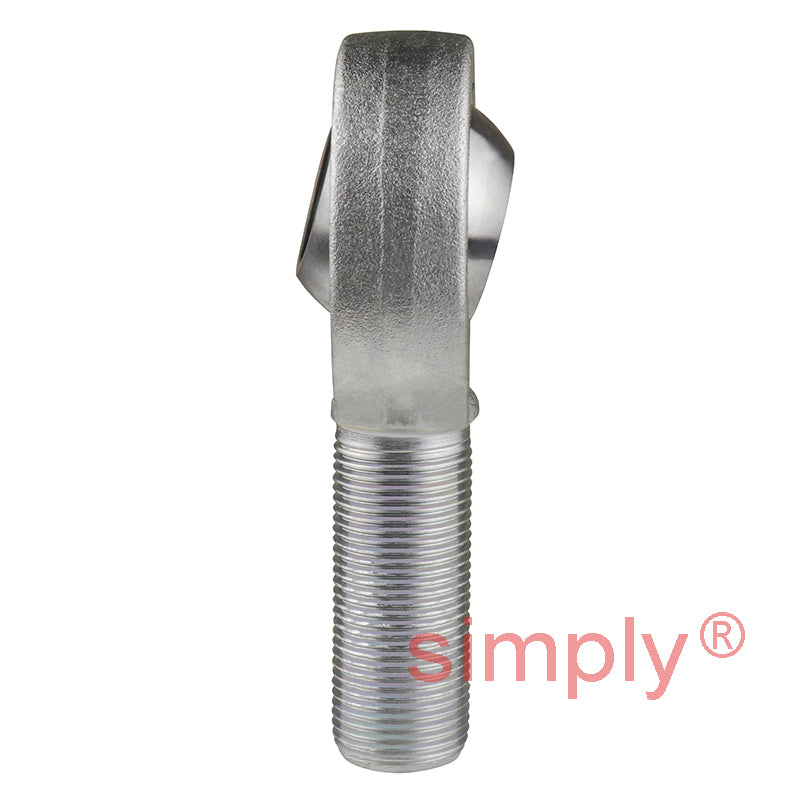

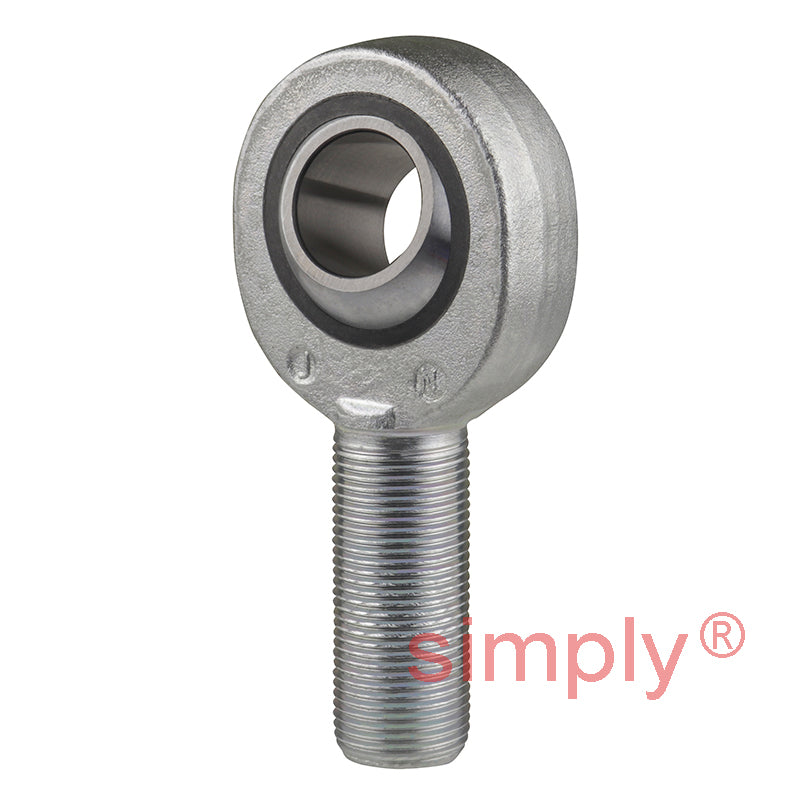

SKF SAKB20F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M20x1.5 Thread
SKF SAKB20F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M20x1.5 Thread
Regular price
CHF 26.00
ex VAT
Regular price
Sale price
CHF 26.00
ex VAT
Equivalent to: MS-M20
In stock
Price Break
10+
CHF 20.08
19+
CHF 18.95
29+
CHF 18.72
39+
CHF 18.50
49+
CHF 18.27
74+
CHF 18.05
99+
CHF 16.92
199+
CHF 16.69
249+
CHF 16.47
499+
CHF 16.24
999+
CHF 15.79
Description
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Equivalent: MS-M20
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 20mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 20mm |
|---|---|
| d2 max | 51mm |
| G | M20x1.5 |
| B | 25mm |
| C1 max | 18mm |
| h | 78mm |
| a | 14deg |
| Dynamic load C | 31 kN |
| Static load Co | 50 kN |
| Weight | 0.37 kg |
| dk | 34.9mm |
| l1 min | 45mm |
| l2 max | 106mm |
| r1 min | 0.3mm |
