SKU: SSUCP.208-24

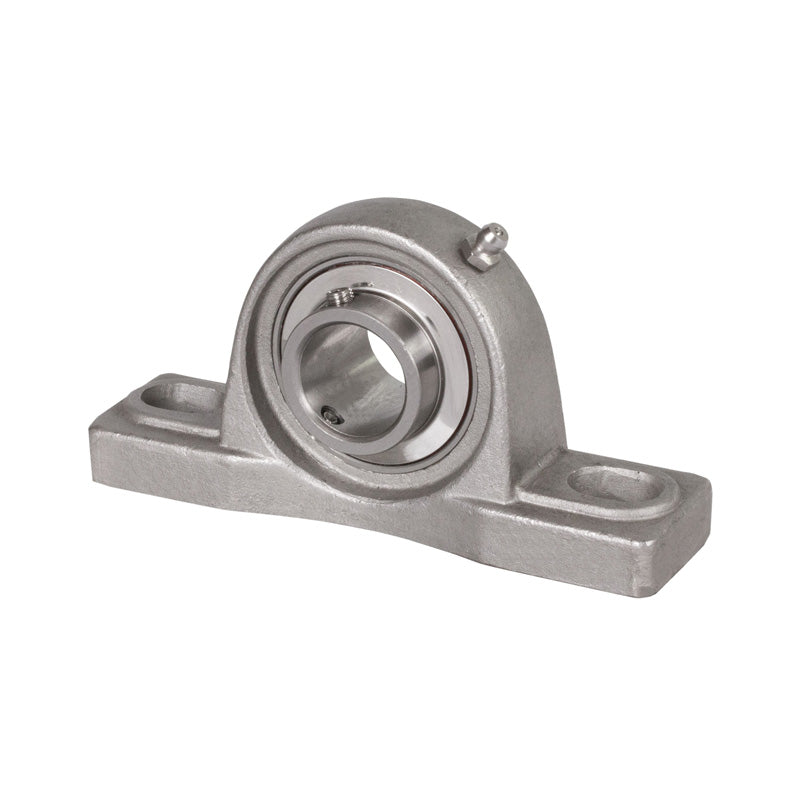

SSUCP208-24 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Stainless Insert
SSUCP208-24 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Stainless Insert
Regular price
CHF 102.00
ex VAT
Regular price
Sale price
CHF 102.00
ex VAT
Equivalent to: NP1.1/2
In stock
Price Break
3+
CHF 81.02
4+
CHF 76.47
9+
CHF 75.56
19+
CHF 74.65
49+
CHF 73.74
99+
CHF 72.83
499+
CHF 68.28
999+
CHF 67.37
1999+
CHF 66.46
2999+
CHF 65.55
4999+
CHF 63.72
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP1.1/2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- SSUCP
- Bolt Hole Centres:
- 136mm
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| h | 49.2mm |
| a | 184mm |
| e | 136mm |
| b | 54mm |
| s2 | 21mm |
| s1 | 17mm |
| g | 19mm |
| w | 98mm |
| B1 | 49.2mm |
| n | 19mm |
| Bolt | 14mm |
| Weight | 2 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 4000 rpm |
