SKU: UCFCX12

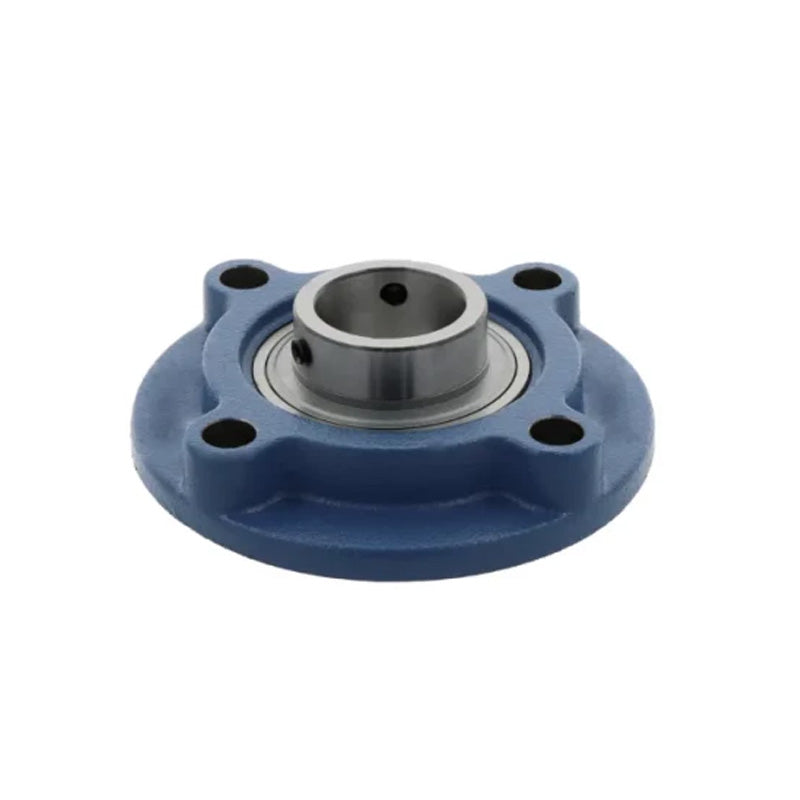

UCFCX12 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert
UCFCX12 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert
Regular price
CHF 72.06
ex VAT
Regular price
Sale price
CHF 72.06
ex VAT
In stock
Price Break
10+
CHF 64.13
19+
CHF 60.53
29+
CHF 59.81
39+
CHF 59.09
49+
CHF 58.37
74+
CHF 57.65
99+
CHF 54.05
199+
CHF 53.32
249+
CHF 52.60
499+
CHF 51.88
999+
CHF 50.44
Couldn't load pickup availability
Share this product
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 116.7mm
Technical
Technical
| d | 60mm |
|---|---|
| a | 194mm |
| p | 165mm |
| (e) | 116.7mm |
| i | 11mm |
| s | 16mm |
| j | 20mm |
| k | 14mm |
| g | 33mm |
| f | 140mm |
| z | 50.7mm |
| B | 65.1mm |
| n | 25.4mm |
| Bolt size | M14 |
| Bearing no | UCX12 |
| Housing no | FCX12 |
| Weight | 4.9 kg |
