SKU: UCPE211-32-SNR

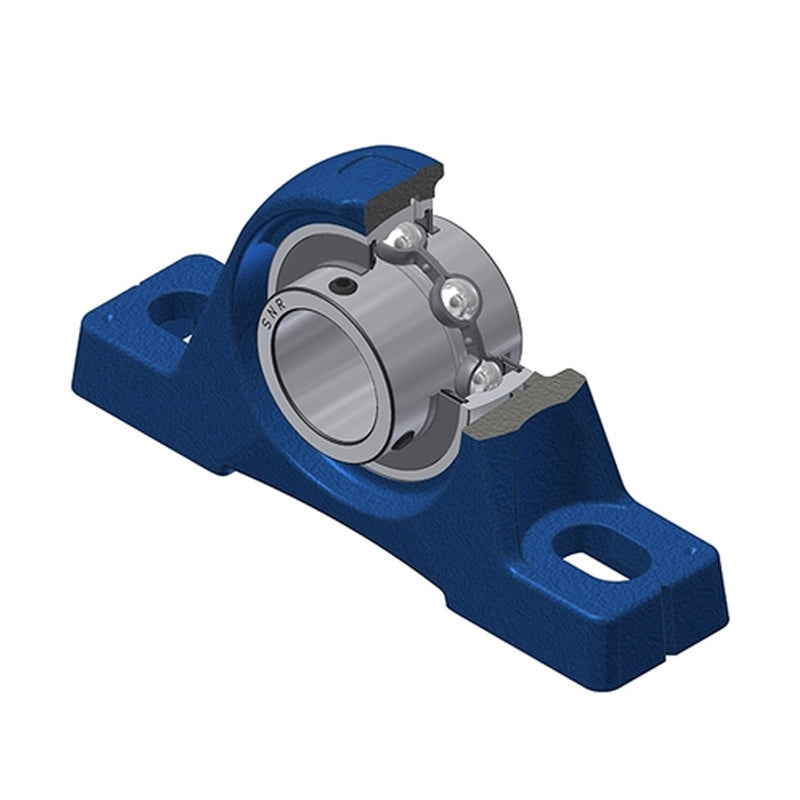

SNR UCPE211-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Insert

SNR UCPE211-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Insert
Regular price CHF 61.00 ex VAT
Regular price Sale price CHF 61.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 48.04
4+ CHF 45.34
9+ CHF 44.80
19+ CHF 44.26
49+ CHF 43.72
99+ CHF 43.18
499+ CHF 40.48
999+ CHF 39.94
1999+ CHF 39.40
2999+ CHF 38.86
4999+ CHF 37.78
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 2mm
A 60mm
A1 35mm
B 55.6mm
H 63.5mm
H1 22.5mm
H2 124.5mm
J 176mm
L 222mm
L1 68mm
N 18mm
N1 30mm
S 22.2mm
G R1/8″
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 16.8 Nm
Mass 3.57 kg
