SKU: UCPH205-15

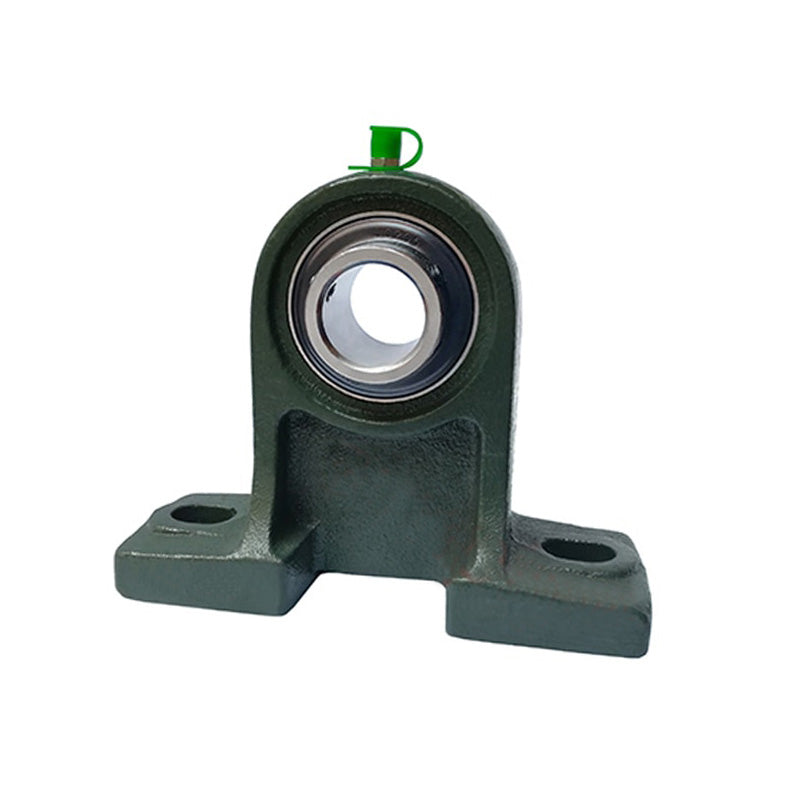

UCPH205-15 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 15/16 inch Insert
UCPH205-15 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 15/16 inch Insert
Regular price
CHF 19.00
ex VAT
Regular price
Sale price
CHF 19.00
ex VAT
In stock
Price Break
3+
CHF 14.48
4+
CHF 13.67
9+
CHF 13.50
19+
CHF 13.34
49+
CHF 13.18
99+
CHF 13.02
499+
CHF 12.20
999+
CHF 12.04
1999+
CHF 11.88
2999+
CHF 11.71
4999+
CHF 11.39
Description
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- UCPH
- Bolt Hole Centres:
- 104.78mm = 4.125 (4-1/8) inch
Technical
Technical
| d | 15/16 inch |
|---|---|
| h | 3-5/32 inch |
| a | 5-1/2 inch |
| e | 4-1/8 inch |
| b | 1-31/32 inch |
| s1 | 1/2 inch |
| s2 | 3/4 inch |
| g | 5/8 inch |
| w | 4-31/64 inch |
| B | 1.3425 inch |
| n | 0.563 inch |
| Bolt size | 3/8 inch |
| Bearing no | UC205-15 |
| Housing no | PH205 |
| Weight | 1.05 kg |
