SKU: YAR204-2FW/VA228-SKF

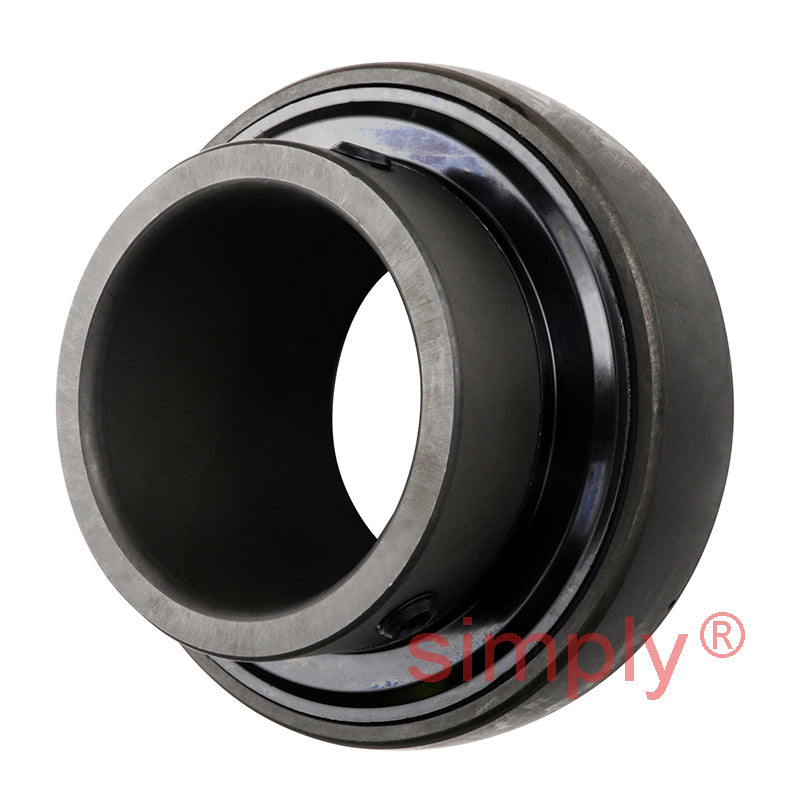

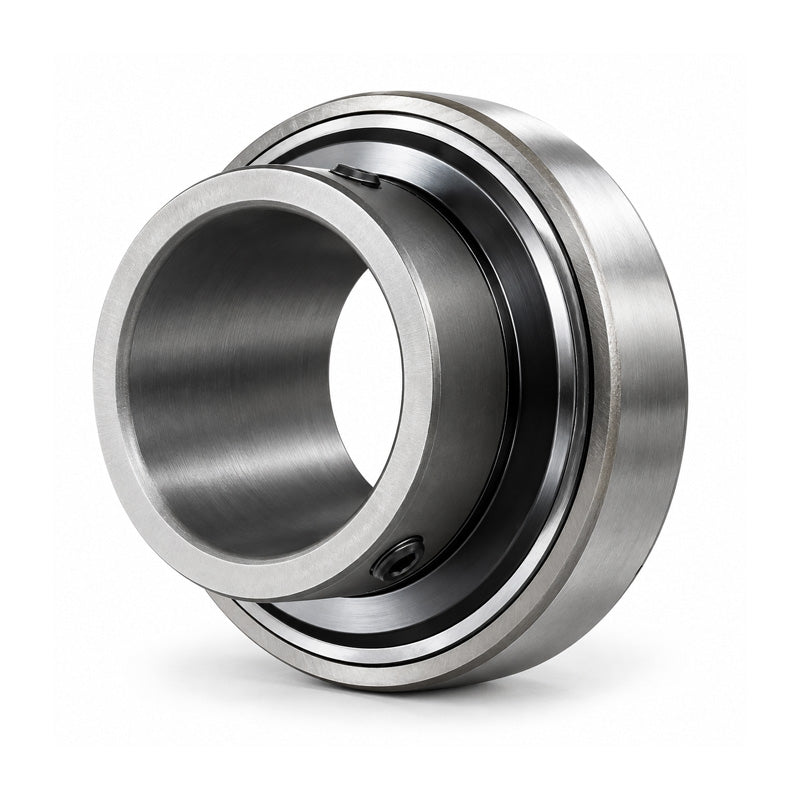

SKF YAR2042FWVA228 Y Bearing Insert for High Temperature Applications with Graphite Cage and Grub Screw Location 20x47x31mm

Name: SKF YAR2042FWVA228 Y Bearing Insert for High Temperature Applications with Graphite Cage and Grub Screw Location 20x47x31mm
Brand: SKF
SKU: YAR204-2FW/VA228-SKF
Price: 166.00 CHF
Availability: InStock

CHF 166.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 132.17

19+ CHF 124.75

29+ CHF 123.26

39+ CHF 121.78

49+ CHF 120.29

74+ CHF 118.81

99+ CHF 111.38

199+ CHF 109.90

249+ CHF 108.41

499+ CHF 106.93

999+ CHF 103.95

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING
Benefits:High temp tolerance from -40 to +250 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 20mm
Temperature Range:: High Temp

Technical

d	20mm
D	47mm
B	31mm
C	14mm
d1	28.2mm
s1	18.3mm
r1r2 min	0.6mm
Dynamic load C	12.7
Static load Co	6.55 kN
Weight	0.14 kg
