SKU: 02473/02420B-TIM
Timken 02473/02420B TSF Single-Row Taper Roller Bearing 1x2.6875x0.875 inch
Timken 02473/02420B TSF Single-Row Taper Roller Bearing 1x2.6875x0.875 inch
Regular price
CHF 148.00
ex VAT
Regular price
Sale price
CHF 148.00
ex VAT
In stock
Price Break
10+
CHF 117.17
20+
CHF 110.58
30+
CHF 109.27
40+
CHF 107.95
50+
CHF 106.63
75+
CHF 105.32
100+
CHF 98.74
200+
CHF 97.42
250+
CHF 96.10
500+
CHF 94.79
1000+
CHF 92.15
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 68.26mm = 2.687 (2-11/16) inch
- Width:
- 22.23mm = 0.875 (7/8) inch

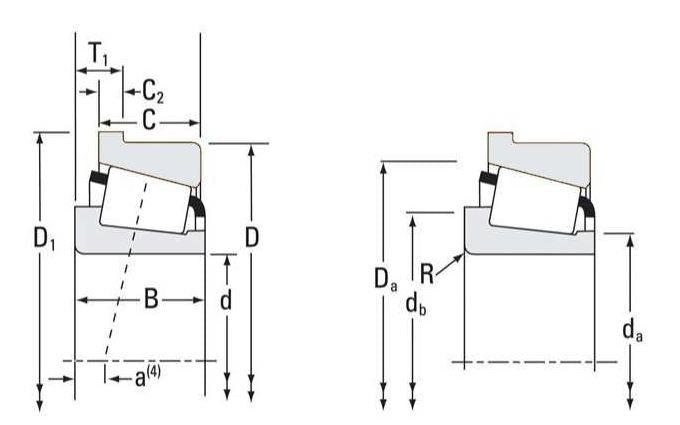

Technical
Technical
| d | 25.4mm = 1 inch |
|---|---|
| D | 68.262mm = 2.6875 inch |
| T1 | 8.73mm = 0.3437 inch |
| Dynamic (1) C1 | 59100N |
| Factors (5) e | 0.42 |
| Factors (5) Y | 1.44 |
| Dynamic (2) C90 | 15300N |
| Dynamic (2) Ca90 | 10900N |
| Factors (5) K | 1.4 |
| Static Co | 70200N |
| Bearing B | 22.225mm = 0.875 inch |
| Bearing C | 17.462mm = 0.6875 inch |
| Bearing a(3) | -5.1mm = -0.2 inch |
| Bearing D1 | 72.128mm = 2.8397 inch |
| Bearing C2 | 3.967mm = 0.1562 inch |
| Shaft max shaft fillet radius R(4) | 0.8mm = 0.03 inch |
| Shaft backing shoulder diameter da | 33.5mm = 1.32 inch |
| Shaft backing shoulder diameter db | 34.5mm = 1.36 inch |
| Housing backing shoulder diameter Da | 65mm = 2.56 inch |
| G1 | 17.5 |
| G2 | 8.48 |
| Cg | 0.0681 |
