SKU: 06B-2-BB-NO26-RENOLD
Renold Blue Box 06B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Renold Blue Box 06B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Regular price
CHF 9.69
ex VAT
Regular price
Sale price
CHF 9.69
ex VAT
In stock
Price Break
10+
CHF 8.62
19+
CHF 8.14
29+
CHF 8.04
39+
CHF 7.95
49+
CHF 7.85
74+
CHF 7.75
99+
CHF 7.27
199+
CHF 7.17
249+
CHF 7.07
499+
CHF 6.98
999+
CHF 6.78
Couldn't load pickup availability
Description
Description

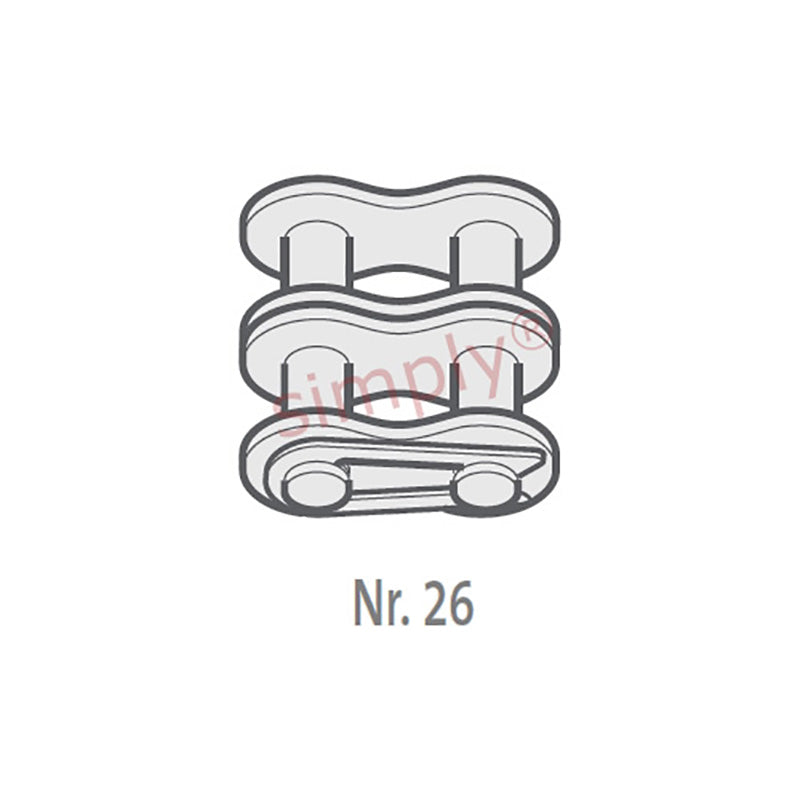

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 5.72mm |
| Roller Diameter max (C) | 6.35mm |
| Plate Height max (D) | 8.2mm |
| Plate Width Inner max (E) | 1.29mm |
| Plate Width Outer max (F) | 1.04mm |
| Pin Diameter max (G) | 3.28mm |
| Pin Length max (H1) | 23mm |
| Connecting Link Extension max (J) | 1.3mm |
| ISO606 Tensile Strength min | 16900 N |
| Weight | 0.002kg/m |
