SKU: 07100S/07196.B-TIM

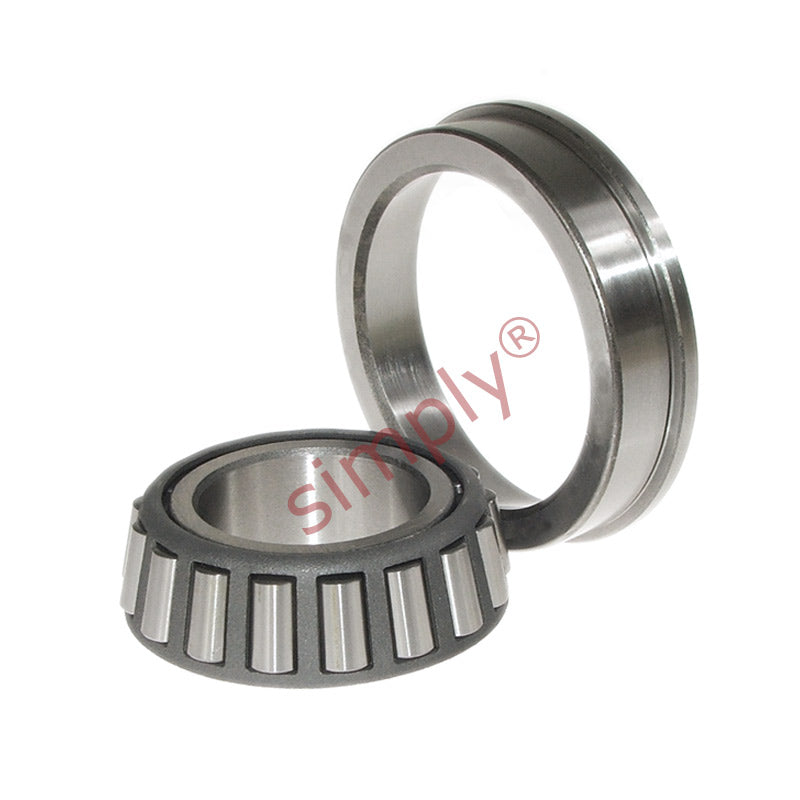

Timken 07100S/07196B Imperial Taper Roller Bearing Cup and Cone Set 1x1.9687x0.5313 inch
Timken 07100S/07196B Imperial Taper Roller Bearing Cup and Cone Set 1x1.9687x0.5313 inch
Regular price
CHF 102.00
ex VAT
Regular price
Sale price
CHF 102.00
ex VAT
In stock
Price Break
10+
CHF 80.63
20+
CHF 76.10
30+
CHF 75.19
40+
CHF 74.29
50+
CHF 73.38
75+
CHF 72.47
100+
CHF 67.94
200+
CHF 67.04
250+
CHF 66.13
500+
CHF 65.23
1000+
CHF 63.41
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 50.005mm = 1.969 (1-31/32) inch
- Width:
- 13.5mm = 0.531 (17/32) inch
Technical
Technical
| Cup | 07196B |
|---|---|
| Cone | 07100S |
| Inside diameter | 1 inch (25.4mm) |
| Outside diameter | 1.9687 inch (50mm) |
| Cone width | 0.5614 inch (14.25956mm) |
| Cup width | 0.3750 inch (9.525mm) |
| Bearing width | 0.5313 inch (13.5mm) |
