SKU: 08B-2-BB-NO30-RENOLD
Renold Blue Box 08B-2-NO30 BS Duplex Chain Double Cranked Link 1/2 inch Pitch
Renold Blue Box 08B-2-NO30 BS Duplex Chain Double Cranked Link 1/2 inch Pitch
Regular price
CHF 18.00
ex VAT
Regular price
Sale price
CHF 18.00
ex VAT
In stock
Price Break
2+
CHF 13.94
5+
CHF 13.16
10+
CHF 13.00
29+
CHF 12.85
49+
CHF 12.69
75+
CHF 12.53
100+
CHF 11.75
200+
CHF 11.59
250+
CHF 11.44
500+
CHF 11.28
1000+
CHF 10.97
Description
Description

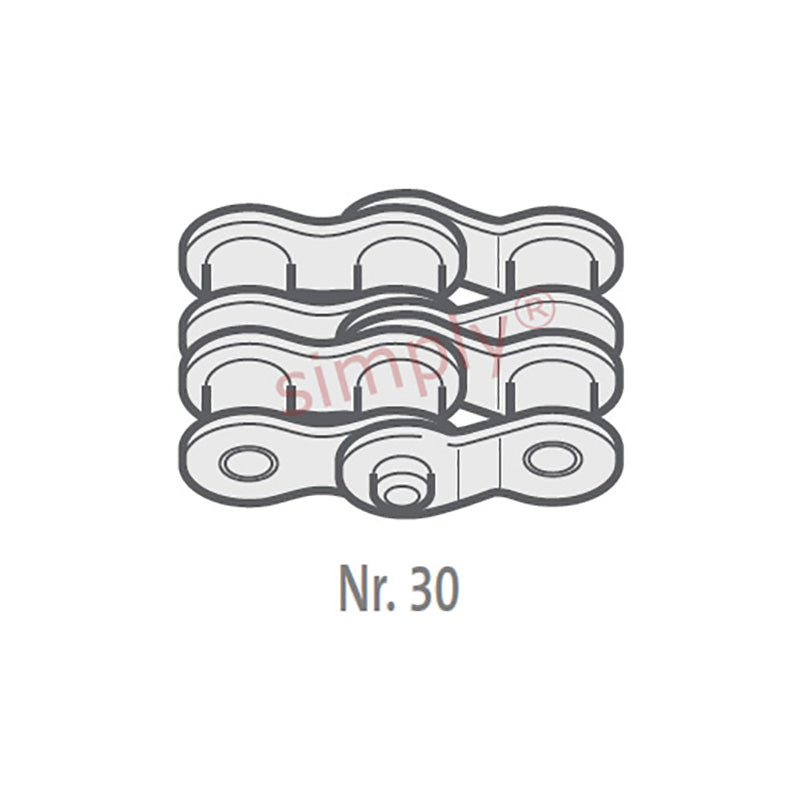

| Renold No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.75mm |
| Roller Diameter max (C) | 8.51mm |
| Plate Height max (D) | 11.7mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 4.45mm |
| Pin Length max (H1) | 30.4mm |
| Connecting Link Extension max (J) | 2mm |
| ISO606 Tensile Strength min | 31100 N |
| Weight | 0.006kg/m |
