SKU: 08B-2-NO12-MB
Branded 08B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1/2 inch Pitch
Branded 08B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1/2 inch Pitch
Regular price
CHF 6.00
ex VAT
Regular price
Sale price
CHF 6.00
ex VAT
Equivalent to: 08B-2-OL
In stock
Price Break
2+
CHF 4.29
5+
CHF 4.05
10+
CHF 4.00
29+
CHF 3.95
49+
CHF 3.90
75+
CHF 3.85
100+
CHF 3.61
200+
CHF 3.57
250+
CHF 3.52
500+
CHF 3.47
1000+
CHF 3.37
Description
Description
Branded OL / No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 08B-2-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical

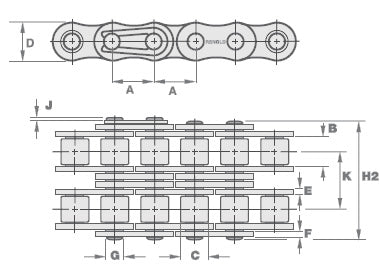

| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.75mm |
| Roller Diameter max (C) | 8.51mm |
| Plate Height max (D) | 11.8mm |
| Plate Width Inner max (E) | 1.5mm |
| Plate Width Outer max (F) | 1.5mm |
| Pin Diameter max (G) | 4.45mm |
| Pin Length max (H2) | 31mm |
| Connecting Link Extension max (J) | 1.1mm |
| Transverse Pitch nom (K) | 13.92mm |
| ISO606 Tensile Strength min | 31100 N |
| Weight | 0.006kg/m |
