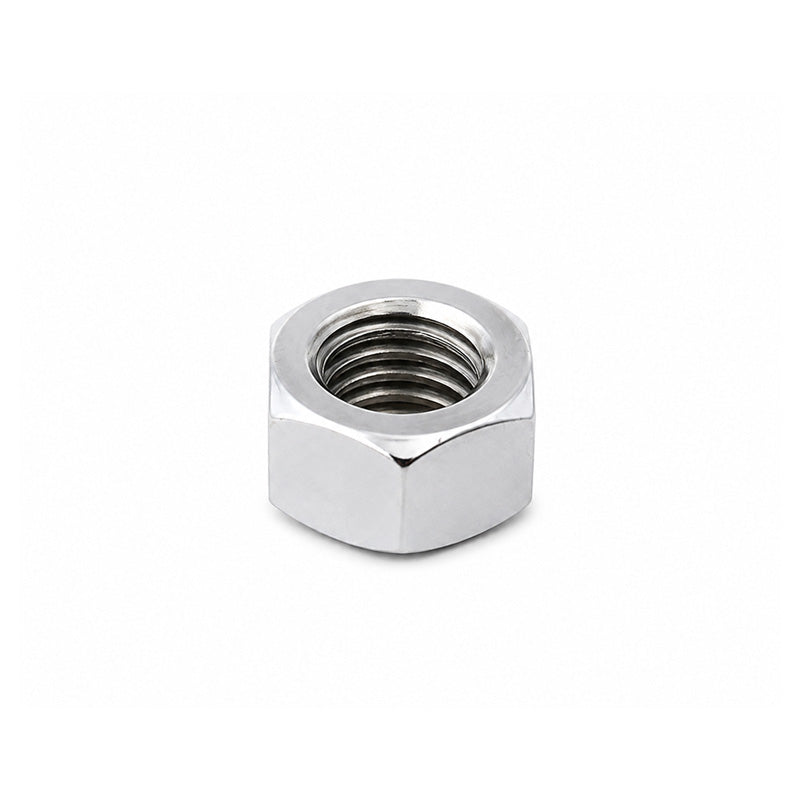

• 1/4 UNF Bright Zinc Plated High Tensile Steel Nut
1 1

SKU: 1/4-UNF-NUT11

1/4 UNF Bright Zinc Plated High Tensile Steel Nut

1/4 UNF Bright Zinc Plated High Tensile Steel Nut
CHF 1.00 ex VAT
CHF 1.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 0.43
20+ CHF 0.29
50+ CHF 0.18
100+ CHF 0.11
500+ CHF 0.04
1000+ CHF 0.03
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Nuts: A standard 6 sided bright zinc plated high tensile steel nut. A type of fastener with a threaded hole. Nuts are almost always used opposite a mating bolt to fasten a stack of parts together. The two partners are kept together by a combination of their threads' friction, a slight stretch of the bolt, and compression of the parts.
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
1/4 inch UNF
Outside Diameter:
10.92mm = 0.43 inch approx.
Thickness:
5.59mm = 0.22 inch approx.
Pitch:
28 (TPI)
Technical
Inside Diameter (d) 6.35mm = 0.25 (1/4) inch approx.
Outside Diameter (D) 10.92mm = 0.43 inch approx.
Width (a) 5.59mm = 0.22 inch approx.
TPI (Threads Per Inch) 28 TPI
