SKU: 10.5SS316-JUB

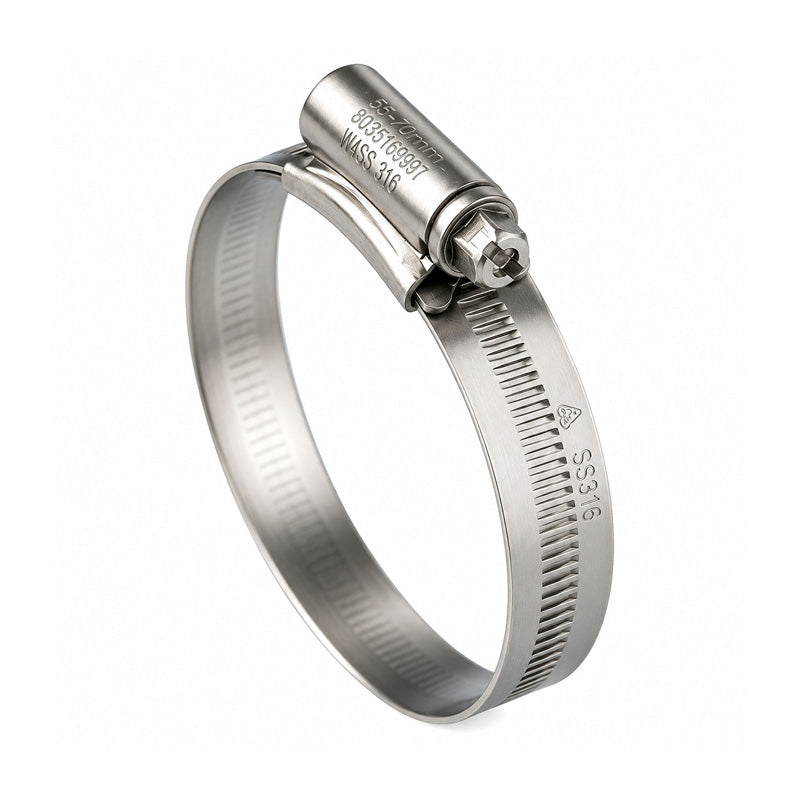

10.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 235mm-267mm Band Width 13mm
10.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 235mm-267mm Band Width 13mm
Regular price
CHF 12.42
ex VAT
Regular price
Sale price
CHF 12.42
ex VAT
Low stock
Price Break
5+
CHF 12.30
10+
CHF 11.80
20+
CHF 11.55
50+
CHF 11.18
100+
CHF 10.93
500+
CHF 10.31
1000+
CHF 8.69
Couldn't load pickup availability
Description
Description
316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 235mm
- Max Adjustment Range:
- 267mm
Technical
Technical
| BS No. | 267 |
|---|---|
| Adjustment Range | 235mm - 267mm |
| Adjustment Range | 9-1/4 - 10-1/2 inch |
| Band Width (+/- 0.1) | 13mm |
| Band Thickness (+/- 0.1) | 0.914mm |
| Recommended Torque | 5.9Nm |
| Maximum Torque | 7.9Nm |
| Maximum Pressure | 18 Psi |
