SKU: 100-1-NO12-MB
Branded 100-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
Branded 100-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
Regular price
CHF 10.20
ex VAT
Regular price
Sale price
CHF 10.20
ex VAT
Equivalent to: 100-1-OL
In stock
Price Break
10+
CHF 9.08
19+
CHF 8.57
29+
CHF 8.47
39+
CHF 8.36
49+
CHF 8.26
74+
CHF 8.16
99+
CHF 7.65
199+
CHF 7.55
249+
CHF 7.45
499+
CHF 7.34
999+
CHF 7.14
Couldn't load pickup availability
Description
Description

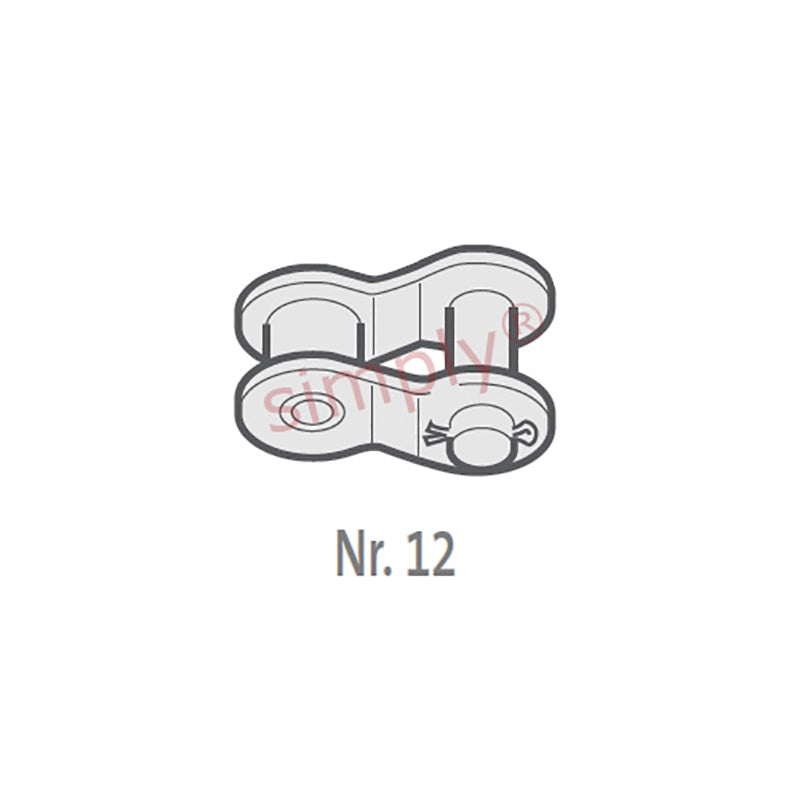

Branded OL / No. 12 ANSI Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 100-1-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 18.9mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 30.1mm |
| Plate Width Inner max (E) | 3.9mm |
| Plate Width Outer max (F) | 3.9mm |
| Pin Diameter max (G) | 9.53mm |
| Pin Length max (H1) | 40mm |
| Connecting Link Extension max (J) | 3.2mm |
| ISO606 Tensile Strength min | 87000 N |
| Weight | 0.04kg/m |
