SKU: 100-2-SYN-NO107-RENOLD
Renold Synergy 100-2-NO107 ANSI / AS Duplex Chain Outer Link To Be Riveted 1-1/4 inch Pitch
Renold Synergy 100-2-NO107 ANSI / AS Duplex Chain Outer Link To Be Riveted 1-1/4 inch Pitch
Regular price
CHF 113.00
ex VAT
Regular price
Sale price
CHF 113.00
ex VAT
In stock
Price Break
2+
CHF 90.03
5+
CHF 84.97
10+
CHF 83.96
29+
CHF 82.94
49+
CHF 81.93
75+
CHF 80.92
100+
CHF 75.86
200+
CHF 74.85
250+
CHF 73.84
500+
CHF 72.83
1000+
CHF 70.81
Description
Description

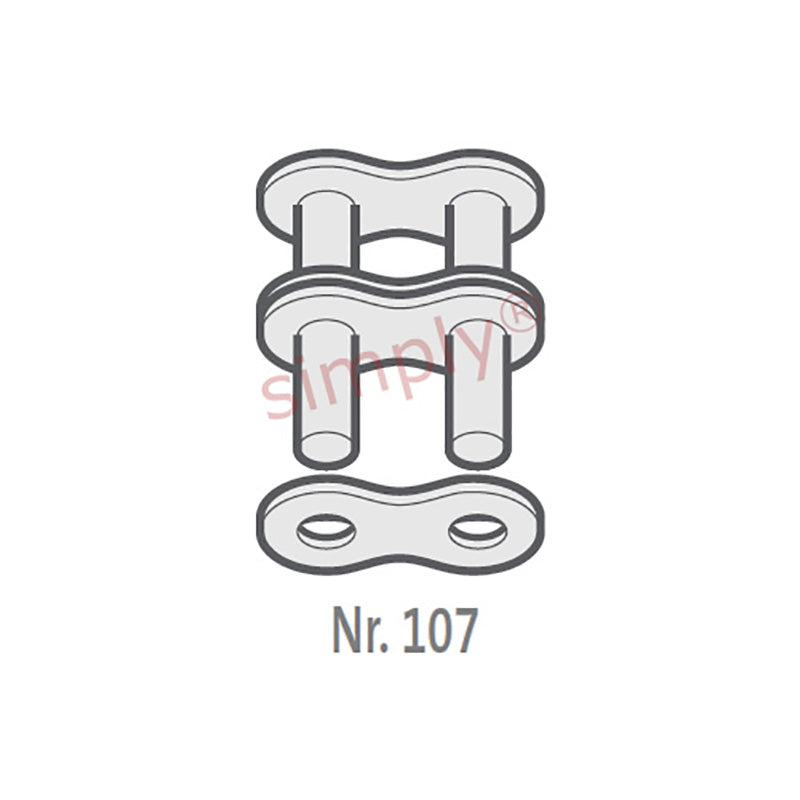

| Renold No. 107 ANSI Duplex Connecting Link: For use with all sizes and types of chain where optimum security is desired. The link is supplied with bearing pins riveted into one outer plate. The other outer plate is an interference fit on the bearing pins, the ends of which should be riveted over after the plate is fitted. Press fit connecting links should only be used once; new links must be used to replace dismantled links. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 18.9mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 30.17mm |
| Plate Width Inner max (E) | 4.06mm |
| Plate Width Outer max (F) | 4.06mm |
| Pin Diameter max (G) | 9.54mm |
| Pin Length max (H2) | 75.4mm |
| Connecting Link Extension max (J) | 4.2mm |
| Transverse Pitch nom (K) | 35.76mm |
| ISO606 Tensile Strength min | 174000 N |
| Weight | 0.08kg/m |
