SKU: 100-2-SYNERGY-10FT-RENOLD

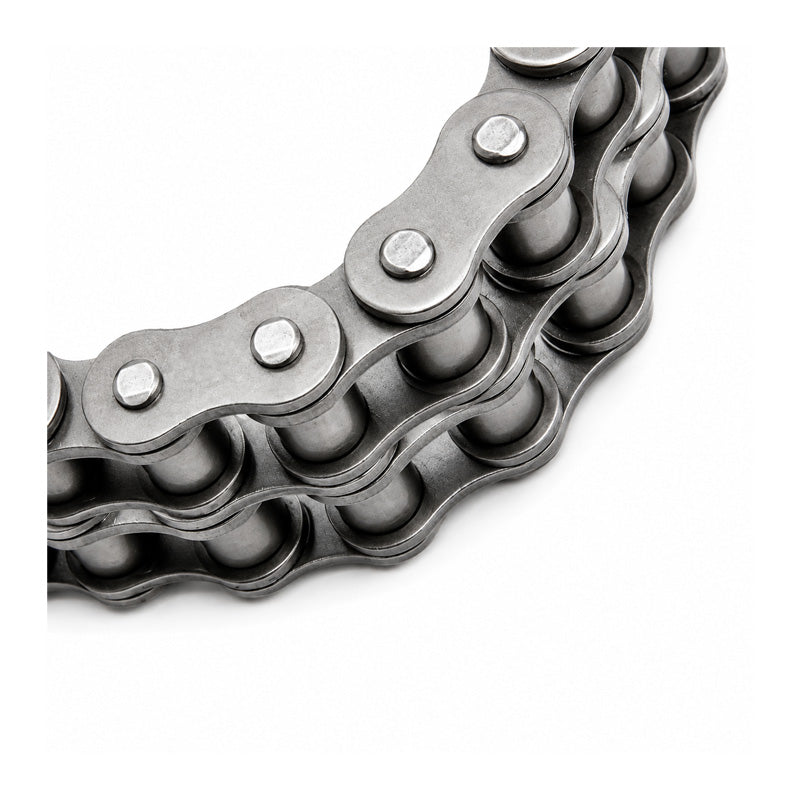

Renold Synergy 100-2 ANSI / AS Duplex Roller Chain 1-1/4 inch Pitch - 10 Feet Length
Renold Synergy 100-2 ANSI / AS Duplex Roller Chain 1-1/4 inch Pitch - 10 Feet Length
Regular price
CHF 1,923.57
ex VAT
Regular price
Sale price
CHF 1,923.57
ex VAT
Equivalent to: GY100A2
In stock
Price Break
10+
CHF 1,711.98
19+
CHF 1,615.80
29+
CHF 1,596.56
39+
CHF 1,577.33
49+
CHF 1,558.09
74+
CHF 1,538.86
99+
CHF 1,442.68
199+
CHF 1,423.44
249+
CHF 1,404.21
499+
CHF 1,384.97
999+
CHF 1,346.50
Couldn't load pickup availability
Description
Description
Renold Synergy High Performance Chain: Renold Synergy chain will last three times longer in normal working conditions than your current non-Renold chain or your next chain is free. It's that simple. If the working life of your non Renold Chain is unsatisfactory, try Renold Synergy®. You will see productivity increase, downtime cut and costs saved. Renold are so confident that their chain will significantly outlast any other non-Renold brand chain that we will give you a replacement chain free*. There has never been a better time to specify Renold Synergy® - the only high performance transmission chain.
Equivalent: GY100A2
* Subject to site visit from a Renold Service Engineer
Renold Synergy® has transformed the productivity and efficiency of all these industrial applications and more.
Equivalent: GY100A2
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 18.9mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 30.17mm |
| Plate Width Inner max (E) | 4.06mm |
| Plate Width Outer max (F) | 4.06mm |
| Pin Diameter max (G) | 9.54mm |
| Pin Length max (H2) | 75.4mm |
| Connecting Link Extension max (J) | 4.2mm |
| Transverse Pitch nom (K) | 35.76mm |
| ISO606 Tensile Strength min | 174000 N |
| Weight | 8.4kg/m |
