SKU: 100ASPZ2-ALUM

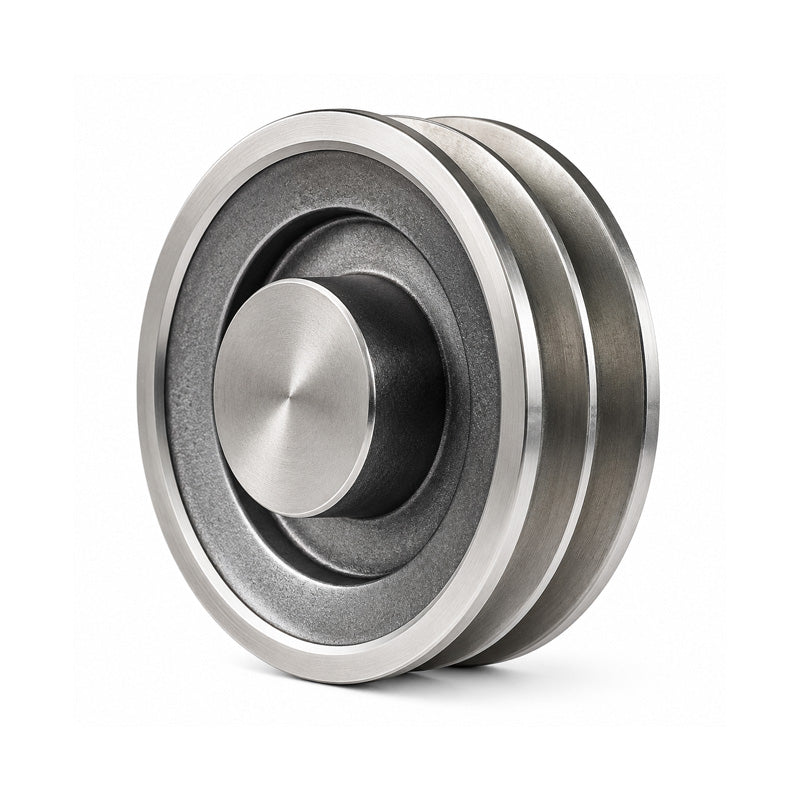

SPZ Section Un-Bored Aluminium Pulley with 2 Grooves 100mm Pitch Diameter (Hub Does Not Protrude Pulley Wall)
SPZ Section Un-Bored Aluminium Pulley with 2 Grooves 100mm Pitch Diameter (Hub Does Not Protrude Pulley Wall)
Regular price
CHF 28.83
ex VAT
Regular price
Sale price
CHF 28.83
ex VAT
In stock
Price Break
10+
CHF 25.66
19+
CHF 24.22
29+
CHF 23.93
39+
CHF 23.64
49+
CHF 23.35
74+
CHF 23.06
99+
CHF 21.62
199+
CHF 21.33
249+
CHF 21.05
499+
CHF 20.76
999+
CHF 20.18
Couldn't load pickup availability
Description
Description
SPZ Section Aluminium Pulley Un-Bored: Powerdrive aluminium pulleys are used with v-belts, they are designed with a drill-able centre, pre-marked with a centre point enabling the user to create a precise custom bore to suit individual needs. Manufactured from high quality aluminium, Powerdrive pulleys are lightweight while being hard-wearing and incredibly reliable. Powerdrive aluminium pulleys are perfectly suited for applications such as air compressors generators or printing machinery.
Benefits: Powerdrive aluminium pulleys are available with pitch circle diameters (PCD) ranging from 50mm - 300mm and are made using 356.1 aluminium alloy.
- Brand / Quality:
- Major Brand - High Quality
- Grooves:
- 2
- Outside Diameter:
- 105mm
- Pitch Diameter:
- 100mm
Technical
Technical
| Number of Grooves | 2 |
|---|---|
| Outer Diameter | 105mm |
| Pitch | 100mm |
| Hub Diameter | 45mm |
| Hub Width | 28mm |
| Weight | 0.385kg |
