SKU: 100AT5/420

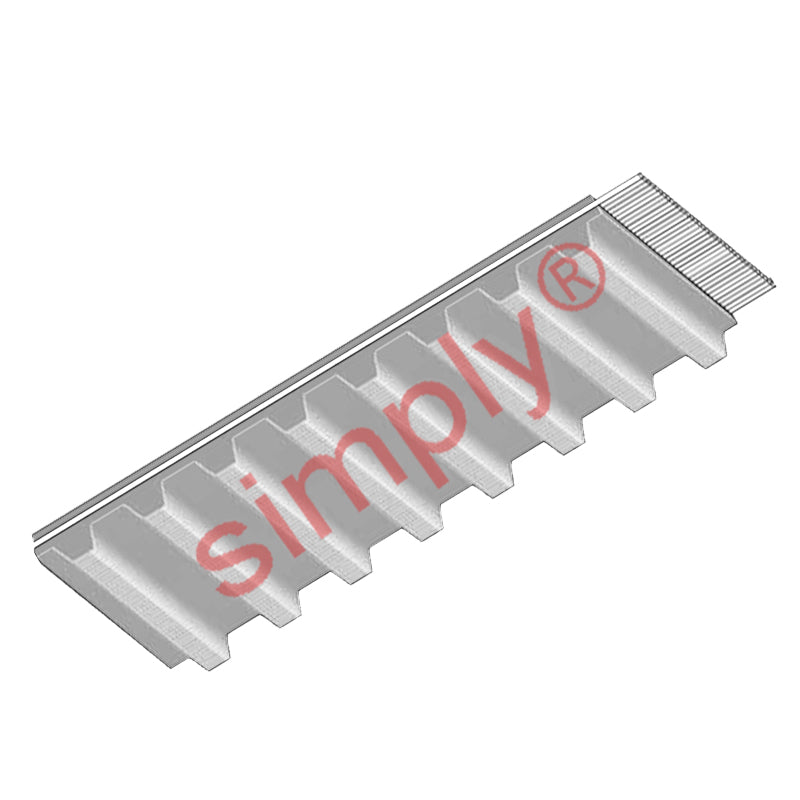

100AT5/420 ContiTech Standard Synchroflex Timing Belt 100mm Width 5mm Pitch 84 Teeth
100AT5/420 ContiTech Standard Synchroflex Timing Belt 100mm Width 5mm Pitch 84 Teeth
Regular price
CHF 113.00
ex VAT
Regular price
Sale price
CHF 113.00
ex VAT
In stock
Price Break
3+
CHF 90.08
5+
CHF 85.02
10+
CHF 84.00
15+
CHF 82.99
20+
CHF 81.98
30+
CHF 80.97
40+
CHF 75.91
50+
CHF 74.90
60+
CHF 73.88
75+
CHF 72.87
100+
CHF 70.85
Description
Description
AT Standard SYNCHROFLEX® Timing Belts: This belt is manufactured by ContiTech, specialists in rubber and plastics technology. This Synchroflex belt is a truly endless belt, suitable for AT pulleys.
Standard Synchroflex belts consist of just two components, a wear-resistant Contilan carcass and high-grade endless steel wire tension members. This construction provides high flank load capacity and low elastic elongation which makes them unsurpassed for quality and accuracy.
Benefits: High power AT profile, low elastic elongation and high flank load capacity.
- Brand / Quality:
- ContiTech - High Quality
- Thickness:
- 1.5mm
- Belt Width Approx:
- 100mm
- Belt Length Approx:
- 420mm
- Number of Teeth:
- 84
- Item Type:
- AT5 Standard Timing Belt
Technical
Technical
| No of Teeth | 84 |
|---|---|
| Belt Width | 100mm |
| Belt Pitch | 5mm (AT5) |
| Belt Length | 420mm |
| Belt Thickness (hs) | 1.5mm |
| Tooth Height (ht) | 1.2mm |
| Tooth Pitch (t) | 5mm |
| Flank Angle (f) | 50 deg |
| Tension Member Loadings | 8610 N |
| Belt Weight (per metre) | 0.34kg |
