SKU: 1017-15G-RHP

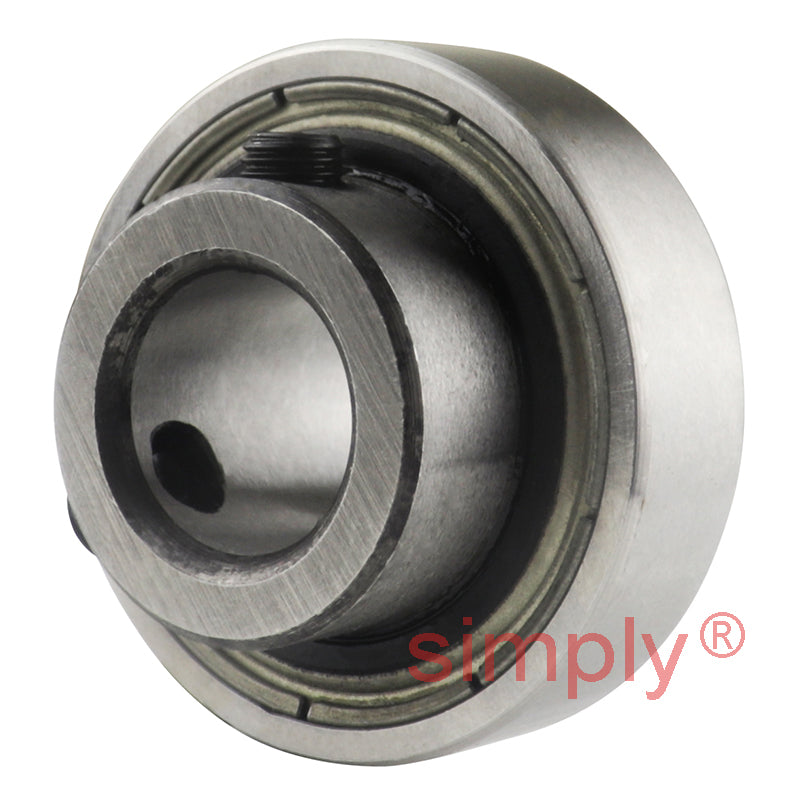

RHP 1017-15G Spherical Outer Full Width Bearing Insert 15mm Bore 40mm Outside Diameter
RHP 1017-15G Spherical Outer Full Width Bearing Insert 15mm Bore 40mm Outside Diameter
Regular price
CHF 12.00
ex VAT
Regular price
Sale price
CHF 12.00
ex VAT
In stock
Price Break
10+
CHF 9.11
20+
CHF 8.60
30+
CHF 8.50
40+
CHF 8.40
50+
CHF 8.29
75+
CHF 8.19
100+
CHF 7.68
200+
CHF 7.58
250+
CHF 7.48
500+
CHF 7.37
1000+
CHF 7.17
Description
Description
|
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 40mm
- Style:
- 1017
Technical
Technical
| Bore | 15mm |
|---|---|
| D | 40mm |
| C | 12mm |
| B | 27.38mm |
| s | 11.55mm |
| d1 | 24.21mm |
| M | 5.35mm |
| r | 0.6mm |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.09 kg |
