• RHP 1025-25DECG Spherical Outer Full Width Bearing Insert 25mm Bore 52mm Outside Diameter
1 1

SKU: 1025-25DECG-RHP

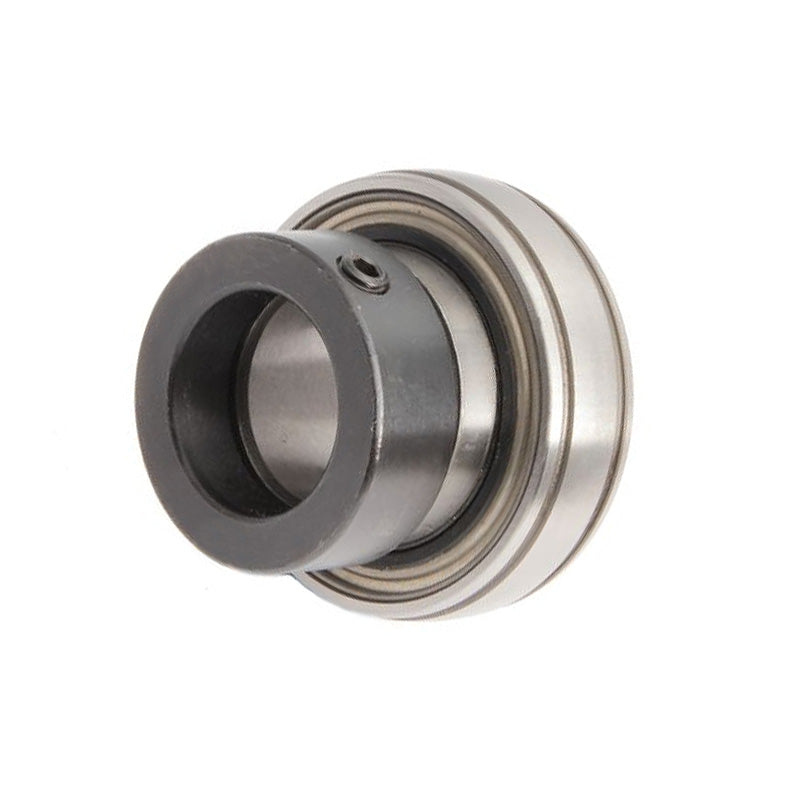

RHP 1025-25DECG Spherical Outer Full Width Bearing Insert 25mm Bore 52mm Outside Diameter

RHP 1025-25DECG Spherical Outer Full Width Bearing Insert 25mm Bore 52mm Outside Diameter
CHF 33.00 ex VAT
CHF 33.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 26.10
20+ CHF 24.63
30+ CHF 24.34
40+ CHF 24.05
50+ CHF 23.75
75+ CHF 23.46
100+ CHF 21.99
200+ CHF 21.70
250+ CHF 21.41
500+ CHF 21.11
1000+ CHF 20.53
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1000-DEC-G Series: Full width bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, eccentric collar fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
25mm
Outside Diameter:
52mm
Style:
1025
Technical
Bore 25mm
D 52mm
C 15mm
B3 44.4mm
s2 17.49mm
d2 38.1mm
r 1mm
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 0.26 kg
